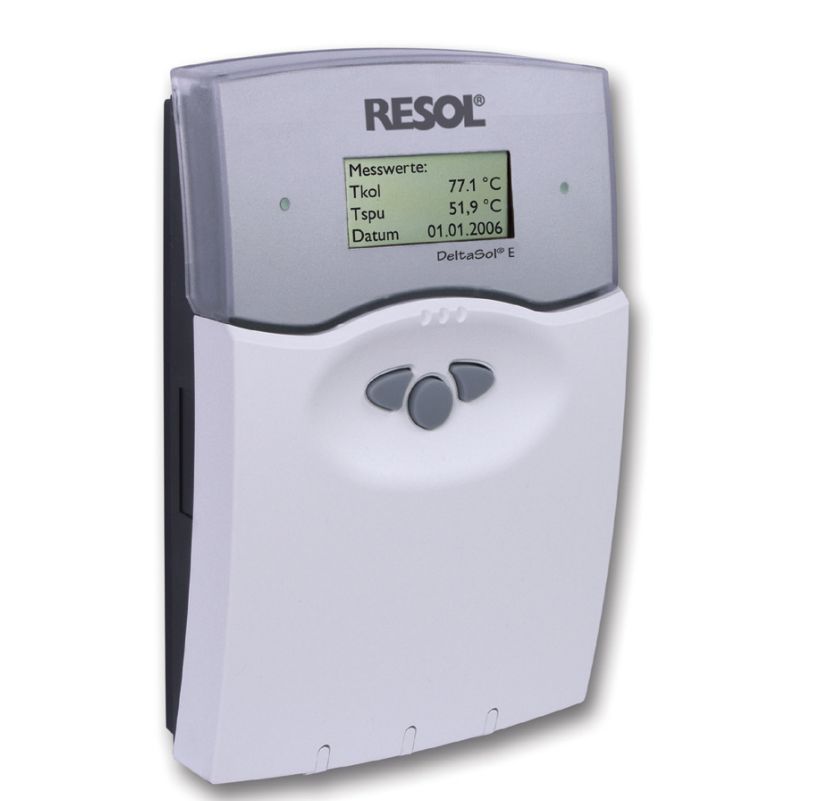

Solar collector control RESOL Deltasol E works with PT1000 temperature sensor. Temperature difference regulator

Article No.:
NAPKOLLEKTOR_VEZERLES_RESOL_Deltasol_E
Solar collector control RESOL Deltasol E works with PT1000 temperature sensor. Temperature difference regulator
Solar collector control RESOL Deltasol E works with PT1000 temperature sensor. Temperature difference regulator
Solar collector control RESOL Deltasol E works with PT1000 temperature sensor. Temperature difference regulator
Solar collector control RESOL Deltasol E works with PT1000 temperature sensor. Temperature difference regulator
Solar collector control RESOL Deltasol E works with PT1000 temperature sensor. Temperature difference regulator
Solar collector control RESOL Deltasol E works with PT1000 temperature sensor. Temperature difference regulator
Kockázatmentes vásárlás
180 napos elállás
Magyar cég, magyarországi raktár!
Máshol olcsóbban látta?
  • Details
  • Info
Details

Solar collector control

Coating: Plastic, PC-ABS and PMMA
Protection: IP 20 / DIN 40 050
Ambient temperature: 0...40°C
Dimensions: 220 x 155 x 62 mm
Installation: Can be mounted on a wall or built into a switch cabinet
Display: 4-segment LCD text display
Operation: Three push buttons on the front of the device
Functions: solar collector and heating system controller with pre-programmed and selectable system schemes, like a standard solar collector system,
2 storage system, East/West collector field, heating support, heat exchange
regulation, thermostatic reheating, solid fuel boiler, switchable
functions and options such as heat quantity measurement, vacuum collector function,< br />freeze protection, minimum temperature limit, speed control,
heat gain averaging, function control based on BAW guidelines.
Sensor inputs:For 10 Pt1000 sensors, 1 x CS10, 1 x V40 and a digital input
Relay outputs:7 relay outputs, of which 3 for speed control, 1 potential-free output
Bus: VBus
Power supply: 220...240 V~
Switching power: 4 (1)A 220...240 V~

More information:

RESOL control

30 types of solar basic systems can be selected for this solar collector control
Speed ​​control, operating hours counter and heat measurement
10 sensor inputs !
7 relay outputs
Function control
RESOL VBus
The control is pre-programmed, personalization is not complicated.
If you still want professional equipment and programming, we can recommend a contractor who Bp. It also goes to homes within a 100 km radius.

The following operating modes can be set:

Standard solar collector system
< span style="color: #000000;">With 1 tank, 1 pump and 3 sensors.

Solar system
with 2 tanks 2 tanks, 4 sensors and 2 pumps

Solar collector system with reheating
< span style="color: #000000;">With 1 storage, 3 heat sensors and storage reheating with boiler.

Solar system with storage layer heating
1 tank, 3 sensors, 1 pump and 3-way valve for layer heating of the tank.

Solar collector two storage system with valve control
2 containers, 3 sensors, 1 pump and 1 pc. 3-way valve.

Solar collector system with two storage systems with pump control
2 tanks, 3 sensors and 2 pumps.

Solar system with East-West collector field
1 tank, 3 sensors 2 pumps

Solar collector system, storage reheating with solid fuel boiler< br />1 tank, 4 sensors, 1 pump and 1 pump for reheating

Solar collector system with heating support
< span style="color: #000000;">1 container, 4 sensors, 1 pump and 1 pc. 3-way valve heating return branch for preheating

Info
Vonalkód:
00098373
EAN-kód:
4202004282017
MPN-kód:
NS001487
Weight:
2 kg/pcs
