Wall boiler

Volume: 80 l
Weight of the water heater without water: 60 kg
Operating pressure: 8 bar
Maximum: 13 bar
Maximum heating water temperature: 95 °C
Width: 800 mm
Diameter: 460 mm
Heat exchanger data:
Snake heat exchanger
- heating surface: 0.40 m2
- power: 8.2 KW
- Operating pressure: 16 bar
- Maximum: 23 bar
- Maximum temperature : 110 °C
Heating pad power: 1.5 kW
With thermostat controllable

ATTENTION!

It is mandatory to install a safety valve at each supply connection of the storage, set to the maximum pressure (cold water inlet, heat exchangers inlet side)

More information:

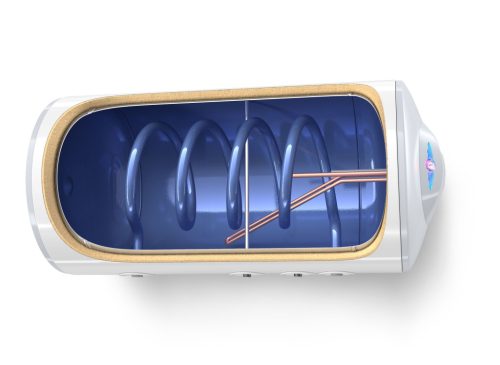

Horizontal boiler

SunSystem horizontal wall-mounted, 1 heat exchanger for usehot water storage with electric heating insert. Horizontal installation, max. operating pressure 13 bar,recommended operating pressure 8 bar, 2-year warranty. SunSystem storage tanks are primarily domestic hot waterheating or solar collector, heat pump systemscan be used as containers.
The containers are welded, made of sheet steel,their internal surface protection is a glass-ceramic coating.
Their thermal insulation is foamed directly onto the tank body hard
polyurethane insulating foam.
Magnesium anode provides additional surface protection .

Place of manufacture: European Union

Warranty: 2 years

Horizontal 80 liter SunSystem hot water tank for 1 heat exchanger 800x460 solar collector Horizontal heat exchanger wall boiler MV type DHW 1.5kW
