Buffer tank - 1500 liter tank with 2 heat exchangers, CAN ALSO BE PLACED IN A CORNER, for hot water storage.

Heating buffer tank with 2 heat exchangers

Buffer storage volume: 1500 liters
Diameter without insulation: 100 cm
Diameter with insulation 120 cm
Height without insulation: 214 cm
Height with insulation 219 cm
Storage operating pressure: 3 bar/95°C
Lower heat exchanger surface: 3.4 m2
Lower heat exchanger volume: 20.65 liters
Upper heat exchanger surface: 1.93 m2
Upper heat exchanger volume: 10.85 liters
Working pressure of heat exchanger: 16 bar/110°C
Weight: 287 kg
Insulation: 10 cm polyester (material similar to wool), removable!

See the drawing for connectors.

Find the corresponding heating pad and sensors in our online store.

Buffer storage

Production time: 1-3 months from order.

Buffer tank with 2 heat exchangers, connection points rotated by 90 degrees, so it can be easily installed in a corner, where the connectors are also easily accessible.
Thermal insulation can be added as an option below the price!
In this in a buffer tank, you store the water that circulates in your heating system and that is heated by the boiler or open fireplace.
You can connect the solar collector to the lower heat exchanger.
It is necessary to connect the solar collector system with a heat exchanger, because it circulates antifreeze. ;">It can be connected to the 2nd upper heat exchanger, e.g. the underfloor heating or another heating unit.
Each container has a connection in which an electric heating insert can be installed (from 2kW to 9kW), and approx. is used to heat half the volume of the container.

If you want to heat the domestic hot water itself, i.e. the hot water flowing from the tap in the tank, choose an indirect storage tank or boiler with a heat exchanger, they are enameled or stainless, so the drinking water in them remains clean!< /span>

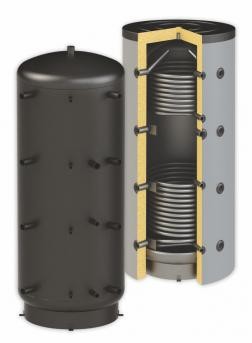

Legend:
1. Aesthetic PVC cover in RAL 9006 color
2. Apply a thick primer to the buffer tank.
3. High-quality, thick, optional thermal insulation.
4. Buffer tank made of low-carbon steel.
5. Lower heat exchanger S1
6. Upper heat exchanger S2

Warranty: 3 years
