Heating buffer tank without heat exchanger

Buffer storage volume: 2000 liters
Diameter without insulation: 120 cm
Diameter with insulation: 140 cm
Height without insulation: 213 cm
Height with insulation: 218 cm
Reservoir operating pressure: 3 bar/95°C
Weight: 254 kg
Insulation: 10 cm polyester (material similar to wool), removable!
See the drawing for connectors.

Find the corresponding heating pad and sensors in our online store.

More information:

Buffer container< /span>

Production time: 1-3 months from order.

Its specialization is the placement of the connectors on one side, within a 90-degree angle, so you can access the joints even when cornered. The steel container is not treated inside (it doesn't need to be!), it has a single layer of primer paint on the outside.
In this buffer tank, you store the water that is also circulated in your heating system. In this, the water in the closed circuit is heated directly by the boiler with a water fireplace or heat pump.
It can also be heated with an electric heating pad.

To produce bath water (domestic hot water, DHW), you can use the hot water from the tank to heat up the tap water in the case of two heat exchanger types.

If you want to heat the domestic hot water itself, i.e. the water flowing from the tap, in the tank, choose an indirect hot water storage tank, boiler!

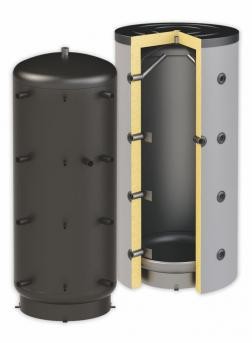

Legend:
1. Aesthetic PVC cover in RAL 9006 color
2. Apply a thick primer to the buffer tank.
3. High-quality, thick, optional thermal insulation.
4. Buffer tank made of low carbon steel.

Warranty: 3 years

Buffer tank - 2000 liter tank without heat exchanger - CAN ALSO BE INSTALLED IN CORNERS - for hot water storage. Sunsystem
