Name: SunSystem 100l indirect WALL storage, RARE 2 HEAT EXCHANGER version, 2 pipe snakes left + 3 kW heating insert. DHW storage, boiler next to solar collector
Brand: SunSystem
SKU: SUN_MB_100VPRL_3kW_B
Price: 354.23 EUR

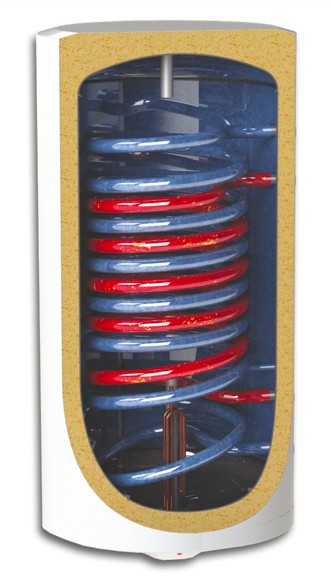

Sunsystem tank with two heat exchangers with left-hand inlet

Stored water volume: 100 l
Permitted operating pressure: 8 bar max 95 °C
Size of heat exchanger (S1) (pipe snake): 0.54 m²
Heat exchanger (S1) volume: 2.8 l (this amount of antifreeze liquid is absorbed by the heat exchanger)
Heat exchanger (S2) size: 0.31 m²
Heat exchanger (S2) volume: 1.6 l (this amount of antifreeze is taken up by the heat exchanger)
3 kW electric heater
The spiral heat exchanger is tested at a pressure of 25 bar.
Heat exchanger (spiral) max operating pressure: 16 bar
Max temperature of heat exchangers (S1-S2): 110 °C
Heat exchanger (S1- S2) operating pressure: 16bar
Max temperature of heat exchangers (S1-S2): 95 °C
Polyurethane insulation thickness: 20mm
Tank wall thickness: 2.5mm
Inner coating of tank: titanium enamel

Look for other sizes of the indirect storage in the pictures of the boiler.

Boiler size:
960x440 mm

More information:

Wall indirect storage

The high-efficiency, wall-mounted water heater equipped with a heat exchanger, supplemented with an electric heating insert, which contains a heating spiral with a right-hand connection. The new generation Sunsystem indirect storage tanks are highly efficient,
safe and help to produce domestic hot water with lower CO2 emissions. To produce hot water, in addition to the electric heater, you have the option of using a renewable energy source (solar collector, heat pump). You can easily read the temperature of domestic hot water (DHW) with the help of the built-in analogue thermometer.
The special titanium enamel is responsible for high-quality corrosion protectioninner surface with beovant and two replaceable anode rods.
Boilers with integrated hot water circulation nozzle to a large extentincrease the feeling of comfort, reduce the amount of water used.
With the help of the heat exchanger located in parallel, small storages can also be equipped with up to 2 heat exchangers! With its help, we can reach a large surface, where we can transfer the heat produced by the solar collector (plane collector/vacuum tube collector) to the DHW.

Place of manufacture: European Union
Warranty: 3 years
