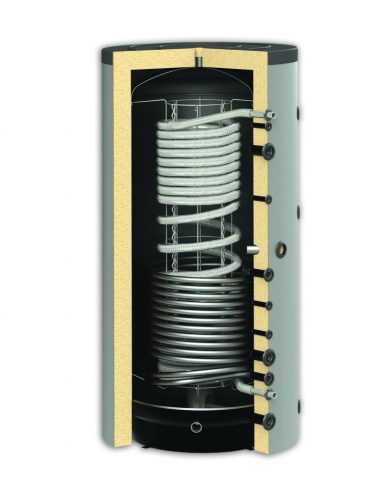

Buffer tank with 1 steel and 1 stainless steel heat exchanger 1000 liter Sunsystem. The inox pipe is used to heat domestic hot water with a fresh water module

Kombi buffer

Buffer tank volume: 1000 liters
Diameter without insulation: 79 cm
Its diameter with insulation is 99 cm (select insulation in the options)
Height: 204/209 cm
Weight: 218 kg.
Surface of the stainless heat exchanger: 6.11 m2
Volume of the fresh water module: 25l
Continuously removable DHW 10/45C, with buffer temperature of 65C: 1840l/h
Continuously removable DHW 10/38C, with buffer temperature of 65C: 2300l/h
Lower heat exchanger surface: 2.48 m2 1” steel tube
Buffer tank operational pressure: 3 bar
The operating pressure of the heat exchangers: 6 bar
Maximum water temperature: 95C
Size of the pipe connections:
1" and 6/4" stubs for for boiler and heating system
1/2”-sockets for connecting thermometers and sensor sleeves.

More information:

Buffer tank with 1 inox and 1 steel heat exchanger

Production time: 3 months from order.

The inox heat exchanger is heated by the warm water in the tank.
This ribbed stainless steel pipe has a particularly large surface area so that it can heat even fast-flowing water.
In the buffer tank itself, it stores the water that circulates in your heating system and which, e.g. the boiler heats you up.
You can connect the solar collector, boiler or heat pump to the lower heat exchanger.
It is therefore necessary to connect the solar collector or the heat pump system with a heat exchanger, because it contains a different liquid, e.g. antifreeze can circulate.
Each tank has a 6/4" connection, in which an electric heater can be installed (from 2kW to 9kW), and half the volume of the tank is used to heat it.
If you want the domestic hot water itself, i.e. the hot water flowing from the tap, in the to heat in a tank and you don't want to use the hot water for heating, choose an indirect storage tank with a heat exchanger, a boiler, they are enameled, so they are clean, and the drinking water remains in them!

Technical data in details!
