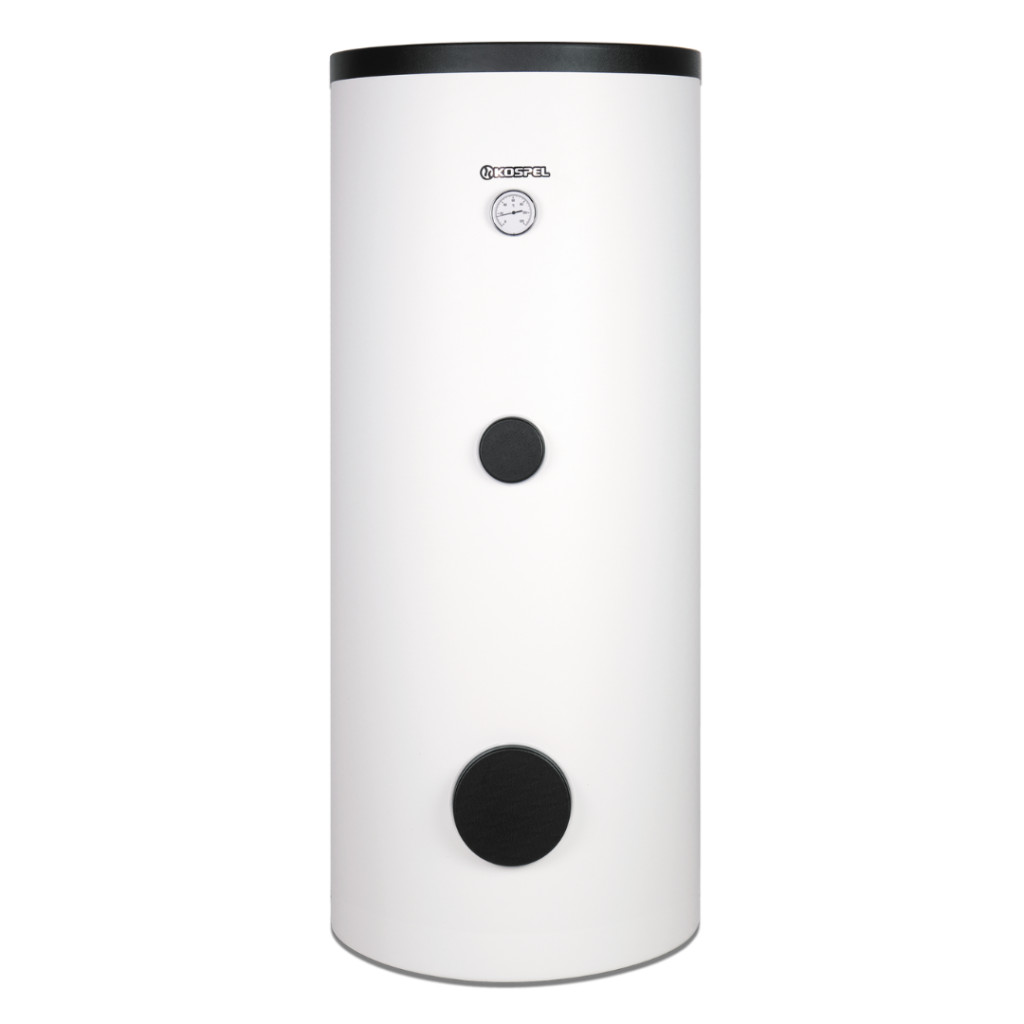

200 liter with 2 heat exchangers!! standing, SunSystem indirect storage heating and solar collector boiler. Domestic hot water storage, enameled tank DHW

Indirect container

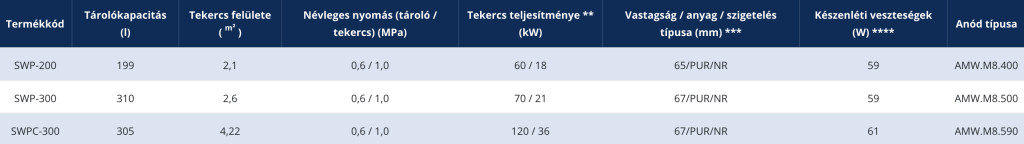

Technical data:
Standing position
outer appearance: RAL 9006 color
Volume 200 L

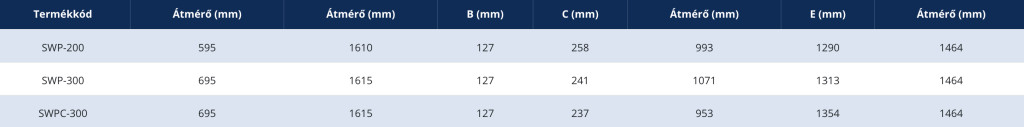

Size: 1340 x 560 mm
Minimum installation space 1460 mm
< span style="color: #000000;">Tank Enameled
Nominal pressure in the tank 10 bar
Insulation: 50 mm
Heating time 15° C – 60°C S1 min
Heating time 15°C – 60°C S2 min
Heat exchange surface S1 0.9 m2
Heat exchange surface S2 0.6 m2
Heat exchanger capacity S1
Heat exchanger capacity S2
Energy consumption in continuous operation 60-80 °C S1 29 kW
Energy consumption in continuous operation 60- 80 °C S2 18 kW
Maximum operating temperature 95 °C
Net weight 82 kg
Nominal pressure in the heat exchanger 16 bar
Installation Vertical
Thermostat installation preparation
Heating insert installation preparation

Features :
- Exclusive design
- Large amount of warm water
- Large amount of magnesium anode
- High efficiency thick polyurethane insulation
- 8 bar safety pressure valve
- Product tested according to the strictest requirements
- titanium-ceramic coating tested at 16 bar inner container

Advantages:

Efficiency: Standing DHW storage tanks with two heat exchangers can be more efficient than traditional electric boilers, as the heat is obtained directly from the heating system or solar collectors, which can result in less energy consumption.

Durability: Tanks made of steel or stainless steel or enameled are durable and resistant to corrosion, ensuring a long service life.

Environmentally friendly: Using indirect boilers can reduce the impact on the environment, as they can produce less energy and greenhouse gases than electric boilers.

Combinability: These storage tanks can be easily combined with other heating systems, such as solar collectors or solar energy utilization systems.

Before you install such a storage, it is always worth consulting with a professional to determine the type and size that best suits your needs and your home. Correct sizing and installation are important for the optimal operation of the indirect boiler.

DHW tank with heat exchanger

How they work:

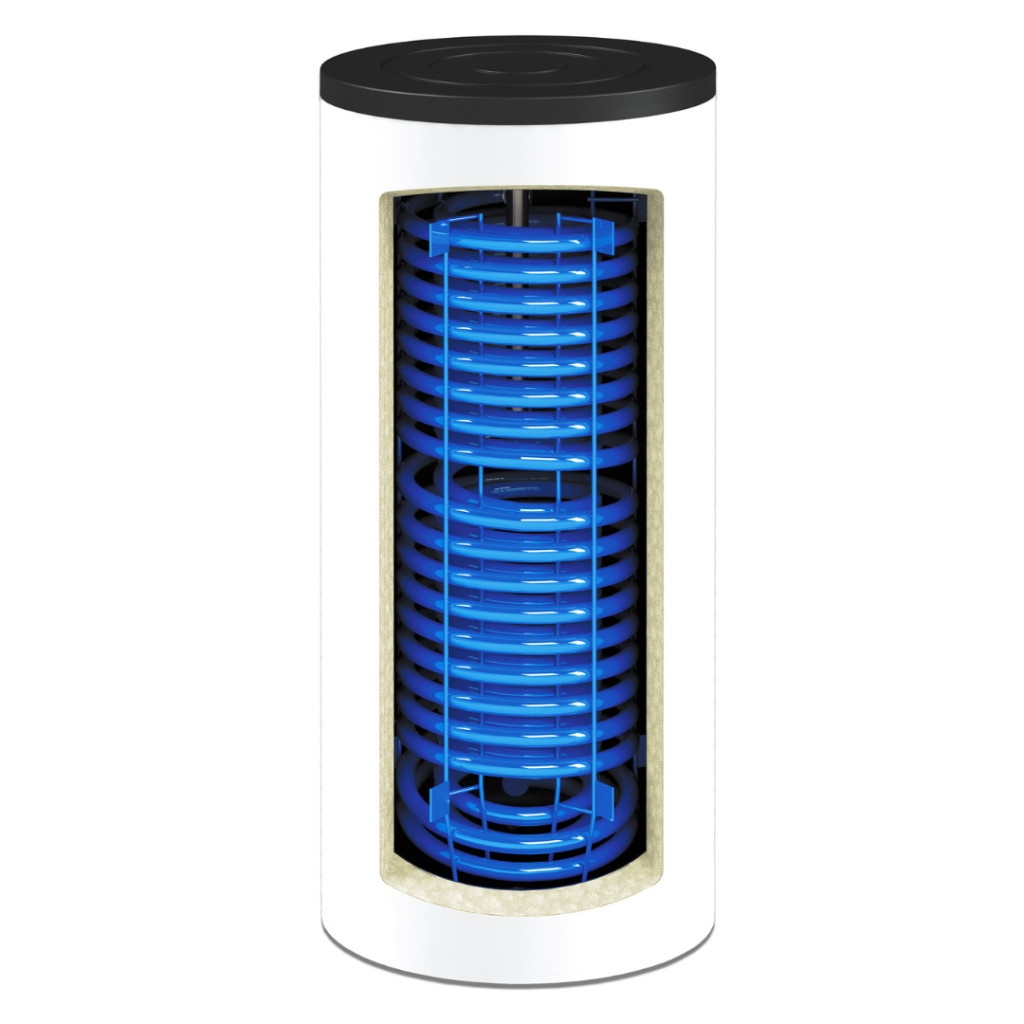

Heat exchangers - There are two heat exchangers in DHW tanks with two heat exchangers. One of the heat exchangers is connected to the external heating system or solar collectors and transfers the heat to the water in the storage. The other heat exchanger is connected to the domestic hot water system.

Insulation - Thermal insulation plays an important role, as it helps reduce heat loss and maintain the temperature of the stored water.

General data:

• standing design
• complex corrosion protection provided by titanium-enamel internal and exchangeable anode
• analog thermometer
• 50 mm thick CFC-free polyurethane ensures minimal heat loss and energy-saving operation
• removability of the inspection opening facilitates cleaning and maintenance of the water heater
• safety valve
• all connections are internally threaded
