Buffer tank without heat exchanger

Storage volume: 1454 liters
Diameter with insulation: 121 cm
< /span>Height with insulation: 225 cm
Tilt height (R2): 251 cm
Storage working pressure: 3 bar/99°C
Weight: 134 kg
Insulation: 10 cm polyester (material similar to wool), removable!
Energy efficiency class: C

DOWNLOAD DATASHEET

See the drawing for connectors.

A: hot water supply Boiler/heating backup 1"1/2
B: 1/2 " connection for measuring instruments
C: Boiler/heating return 1"1/2
I: electric heating pad connector 6/4"

Find the corresponding heating pad and sensors in our online store.

Warranty: 5 years

More information:

Buffer storage without heat exchanger

Production time is 2-3 months from the order.

Hot water storage buffer tank is suitable for storing hot water produced by a boiler, heat pump or pellet boiler.
In this buffer tank, you store the water that is also circulated in your heating system.
Heats the water in the closed circuit directly with the boiler, open fireplace or heat pump.
It can also be heated with an electric heating pad also.
Design that can be placed in a corner with connectors located within 100°.
The steel container is not treated on the inside (it doesn't need to be!), the outside is painted with a single layer of primer.

If you also want to make domestic hot water (bath water), look for heat exchange buffer tanks.
If you would like to store domestic hot water (bath water) in the tank, choose an indirect hot water storage tank, boiler!

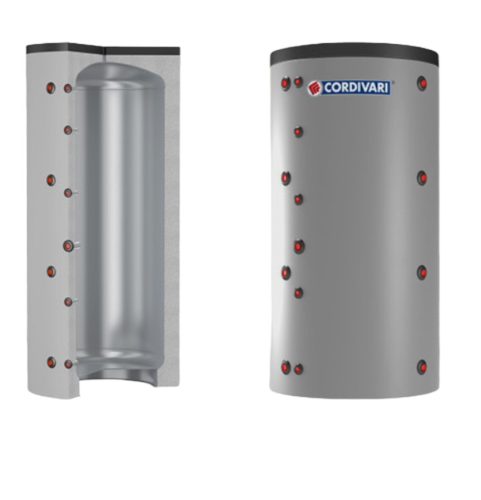

Buffer tank - Cordivari VC1500 - without heat exchanger 1500 liters - corner buffer tank
