2 buffer tanks with heat exchanger

Storage capacity: 717 liters
Diameter with insulation: 101 cm
< /span>Height with insulation: 165.8 cm
Tilt height (R2): 191.5 cm
Storage working pressure: 3 bar/99°C
< /span>Working pressure of heat exchanger: 12 bar/110°C
Upper heat exchanger surface: 1.5 m2
Lower heat exchanger surface: 2.3 m2
< span style="color: #000000;">Weight: 148 kg
Insulation: 10 cm polyester (material similar to wool), removable!
Energy efficiency class: C

DOWNLOAD DATA SHEET

See the drawing for connectors.

A: hot water delivery boiler/heating backup 1"1/2
B: connection for measuring instruments 1/2"
C: boiler/heating return 1"1/2
I: electric heater connector 6/4"
G: heat exchanger inlet 1"
H: heat exchanger outlet 1"

Find the corresponding heating pad and sensors in our online store.

Warranty: 5 years

More information:

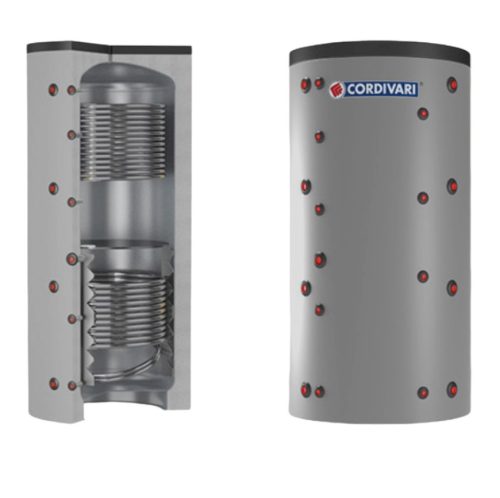

Buffer tank with 2 heat exchangers

Hot water storage buffer tank suitable boiler,heat pump, solar collector or pellet boilerto store hot water produced by
In this buffer tank, you store the water thatalso circulates in your heating system .
The water in the closed circuit is heated directlywith the boiler, open-air fireplace or with a heat pump.
It can also be heated with an electric heating pad.
In a corner design that can be placed within 100°with positioned connectors.
The steel container it is not treated on the inside (it doesn't need to be!),on the outside it has a single layer of primer paint.

The internal heat exchanger can be connected to a fireplace, fireplace,solar collector or heat pump.

If you also want to prepare domestic hot water (bath water), look for buffer tanks with heat exchangers.

If you would like to store domestic hot water (bath water) in the tank, choose a hot water indirect storage, boiler!< /span>
