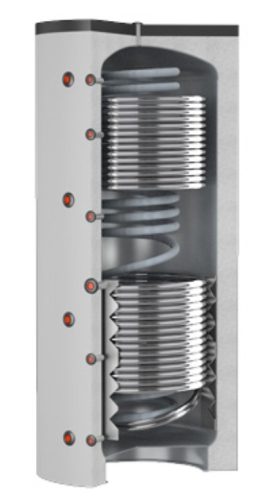

Buffer tank with 3 heat exchangers Cordivari Eco-Combi 1000 liters with 1 inox and 2 steel heat exchangers. The stainless steel pipe is used to heat domestic hot water

Buffer tank with 3 heat exchangers

Buffer tank volume: 1000 liters
Actual volume: 8944 liters
Diameter with insulation: 1010 mm
Diameter without insulation: 790 m
Height: 1840 mm
Tilt height: 2370 mm
Insulation: high-quality removable thermal insulation, ecological polyurethane hard foam
Weight: 220 kg
Stainless heat exchanger surface area: 7.8 m2
Stainless heat exchanger volume: 45.5 liters
Lower heat exchanger surface: 3.1 m2
Lower heat exchanger capacity: 20.7 liters
Upper heat exchanger surface: 2.5 m2
Capacity of upper heat exchanger: 16.3 liters
Maximum operating pressure of tank: 3 bar 99 °C
Maximum operating pressure of heat exchangers: 12 bar 110°C
HMV stainless thread heat exchanger maximum operating pressure: 6 bar

DOWNLOAD DATASHEET

Buffer tank 1 inox and 2 steel heat exchangers

Production time: 3 months from order. For exact delivery time, please inquire by email.

The inox heat exchanger is heated by the hot water in the tank.
The material of the heat exchanger is stainless steel 316L.
This ribbed stainless steel pipe has a particularly large surface to handle even fast-flowing water to heat up.
In the buffer tank itself, it stores the waterthat circulates in its heating system and which e.g. the boiler heats you up.
You can connect the solar collector or heat pump to the lower heat exchanger.
It is therefore necessary to connect the solar collector or the heat pump system with aheat exchanger, because it contains a different liquid, e.g. antifreeze can circulate.

The 2nd upper heat exchanger e.g. it is used for heating with a pellet or gas boiler.
It is not worth heating the entire buffer tank from below with a gas or pellet boiler, these boilers can quickly produce the hot water, i.e. you don't need such a large amount of hot water.
The solar collector can only provide hot water periodically to make,
therefore it is worth storing it in as much as possible, that is why the heat exchanger is at the bottom.
If you want to heat the domestic hot water itself, i.e. the hot water flowing from the tap, in the tank itself and do not want to use the hot water for heating, choose an indirect storage tank with a heat exchanger, a boiler, those they are enamelled, so they are clean, drinking water remains in them!
