Plate heat exchanger with insulation 20 plate heat exchanger 125kW 4x1" with external connection cover plate pair and lifting plate

Plate heat exchanger kit

Technical data of the heat exchanger:

Maximum power of heat exchanger: 125kW

Rated power: 20-45 kW

Number of discs: 20

Connection: 4x 1” external thread

Nominal flow: 12 m³/h

Heat exchange surface: 0.640 m²

Operating pressure: 30 bar

Test pressure: 45-60 bar

Min. temperature: -190°C

Max. temperature: +225°C

Weight: 4.3 kg

Plate material: stainless steel 304 or 316

Slab thickness: 0.4 mm

Solder material: 99.9% Cu

DIMENSIONS:

Length (A): 286 mm

Width (B): 116 mm

Depth (F): 55 mm

Distance (C): 234 mm

Distance (D): 72 mm

Operating tips:

⋅ It is recommended to install the heat exchanger vertically

⋅The sides must be connected in countercurrent

⋅The heat exchanger must be cleaned periodically

Technical data of heat exchanger insulation:

Material: polypropylene foam
Material thickness: 22-24 mm
Maximum operating temperature: 115°C
The excellent thermal conductivity factor: 0.0029 W/(m x K) provides optimal insulation

Plate heat exchanger with insulation

125kW heat exchanger

20 plate stainless version

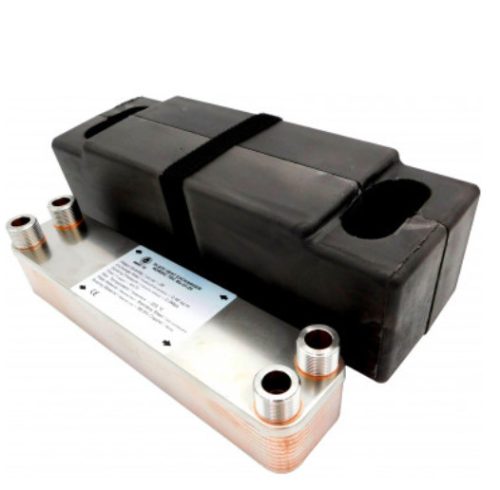

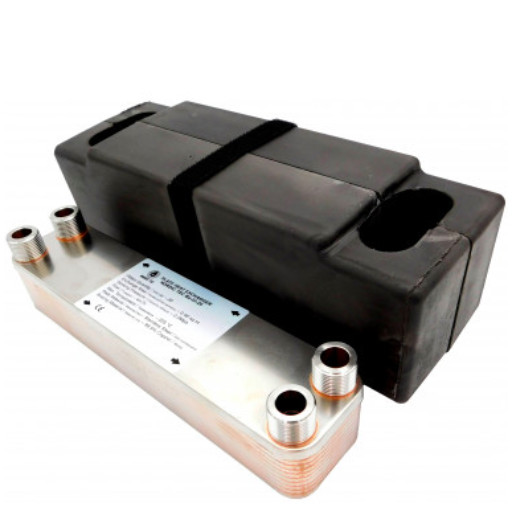

Insulating box for BA-32-20 plate heat exchanger.
Easy to install insulation on heat exchanger, can be placed on it in one move.

Parts of insulation:

- 1 pair of cover plates
- 2 lifting plates

The material of the insulation is polypropylene foam. It is a much better insulation material than the polyurethane foam traditionally used by most companies.
The thermal conductivity of the material is lower than that of the widely used polyurethane insulation. Material thickness approx. 22-24 mm. It is significantly thicker than most insulations on the market, so it outperforms other insulations in terms of efficiency. The thickness of most insulation on the market does not exceed 15-20 mm. The heat exchanger insulation we offer is one of the thickest on the market.
