Solar pump station

Check valve: 450 mm H2O
Nominal size: DN 25 - 1"< /span>
Max. pressure: 10 bar
Max. temperature: 120°C
Seals: Viton sealing rings
Connections : 1" internal thread
Installation height: 440mm
Size: 500 x 260 x 180 mm

More information:

Solar pump station

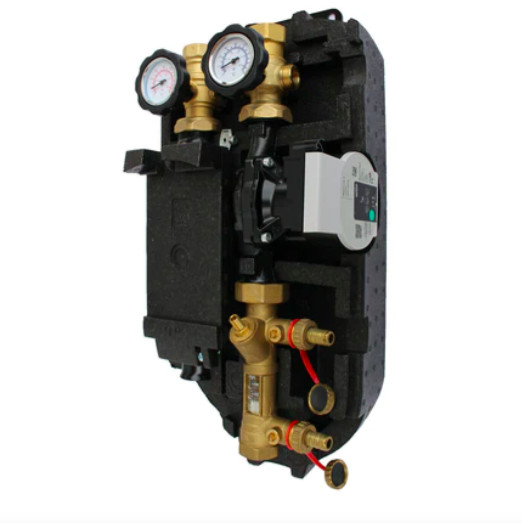

Pre-assembled, compact, two-sided solar station with Wilo Para 25/6 high efficiency pump.
High-quality shut-off valves with integrated non-return valve and thermometers. Fully ready for connection, with EPS thermal insulation shell.
DN25 solar station 40 l/min.

Advantages of Environ Tsol:

Flow regulator: 40 l/min
Filling/emptying/cleaning the circulation pump without draining the system.
The breather installed in the flow pipe.
Compact solar station with safety valve, pressure gauge and connector for the expansion tank.
Side opening for pump cooling
Installation of a wall storage tank is possible.
Ball valves with thermometer
Insulation from black EPP (density 40 g/l)
Ensure a flat sealing surface and seals!

Solar collector pump station 40 l/min Wilo 25/6 circulating pump group thermally insulated + bubble separator + pressure gauge
