Releasing excess heat with a pipe snake laid in the ground. Excess heat drainage for solar collector systems 20 meters DN12 stainless pipe + connector

• Details
• Info

Details

Excess heat removal kit

The set includes:
20 meters DN12 inox throat pipe
Dutch can be installed with 2 1/2" spanners

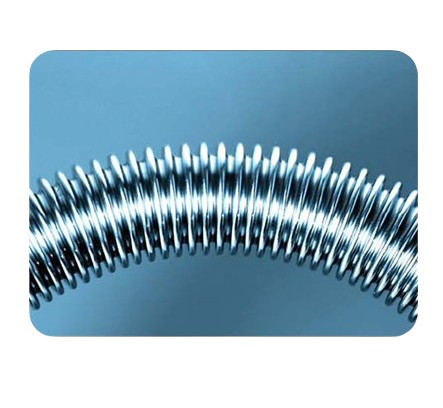

Inox pipe details:
Outer diameter: 16.7 mm +/- 0.4 mm
Inner diameter: 12.2 mm +/- 0.4 mm
Operating pressure at 200° up to 20 bar< br />Weight 0.28kg/m
Surface (this is important when making a heat exchanger): 0.085 m2/flow meter< br />Stainless steel material 1.4404
Conforms to: DIN EN ISO 10380
Temperature range between -270°C +600°C

Additional information:

Emergency cooling circuit

20 meters of DN12 inox pipe for making an emergency cooling circuit with connectors
Easy to make, can be buried in the ground to lay, e.g. under the parking lot.
E.g. it can be nailed to the ground with cut pieces of fence-tensioning steel wire before the top layer is applied.

Info

Vonalkód:

00115704

MPN-kód:

NS002650

Weight:

8 kg/pcs
