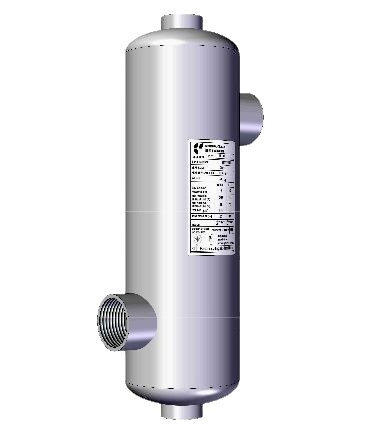

Nordic cylindrical heat exchanger 25kW, for swimming pool heating, made of stainless steel, recommended for replacing the Spirec swimming pool heat exchanger for pools up to 30m3

• Details
• Info

Details

Stainless cylindrical heat exchanger

Diameter: 60 mm
Total length: 520 mm
Connectors:
Spiral pipe (heating) side: 2 x ¾" internal thread K1, K4
Coat (transferred, heat, e.g. pool) side: 2 x 1" internal thread K2, K3
Heat exchanger surface: 0.25 m²
Material of the plates: W 1.4401 (AISI 316L)

Rated power: 25 kW at a temperature difference of 60 °C ΔT

Performance change with decreasing temperature difference T

60 °C = 100%
50 °C = 85%
40 °C = 70%
30 °C = 55%

Flow amount:
Heating side: 31 l/min
Heated side: 213 l/min
Operating pressure: 13 bar
Max. operating temperature: 208°C

More information:

Swimming pool heat exchanger 25kW

To replace a Spirec type heat exchanger
stainless design

For floor heating, swimming pool water for heating
For making domestic hot water
Solar energy utilization heat exchanger
As a heat pump heat exchanger
For cooling and heating oil

Info

Vonalkód:

5903020085

EAN-kód:

6971107630092

MPN-kód:

NS002607

Weight:

2.6 kg/pcs
