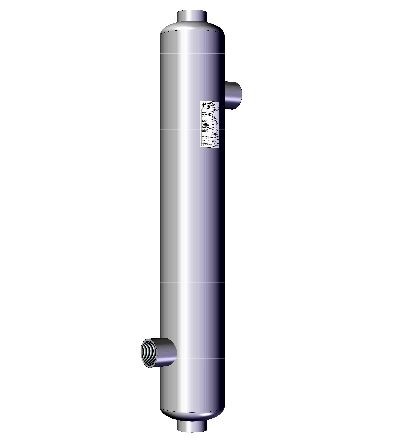

Nordic cylindrical heat exchanger 175kW, for swimming pool heating, made of stainless steel, recommended for replacing the Spirec swimming pool heat exchanger for pools up to 200m3

• Details
• Info

Details

Diameter: 114 mm
Total length: 900 mm
Connectors:
Spiral pipe (heating) side: 2 x 2" internal thread K1, K4
Sheet (transferred, heat, e.g. pool) side: 2 x 2½" internal thread K2, K3
Heat exchanger surface: 1.55 m2
The plates material: W 1.4401 (AISI 316L)

Rated power: 175 kW at a temperature difference of 60 °C T

Performance change with decreasing temperature difference T

60 °C = 100%
50 °C = 85%
40 °C = 70%
30 °C = 55%

Flow amount:
heating side: 68 l/min
Heated side: 432 l/min

Operating pressure: 13 bar
Max. operating temperature: 208°C

More information:

Pool heat exchanger 105 kW to replace a Spirec type heat exchanger
stainless design

For floor heating, swimming pool water heating up to 200 m3
For making domestic hot water
Solar energy utilization heat exchanger
As a heat pump heat exchanger
Oil cooling and heating

Info

Vonalkód:

5903020600

EAN-kód:

6971107630097

MPN-kód:

NS002605

Weight:

11.2 kg/pcs
