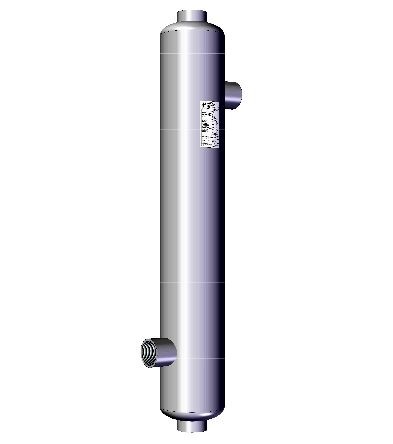

Nordic cylindrical heat exchanger 704kW, for swimming pool heating, made of stainless steel, recommended for replacing the Spirec swimming pool heat exchanger for pools up to 800m3

• Details
• Info

Details

Diameter: 168 mm
Total length: 950 mm
Connectors:
Spiral pipe (heating) side: 2 x 2" internal thread K1, K4
Sheet (transferred, heat, e.g. pool) side: 2 x 4" internal thread K2, K3
Heat exchanger surface: 4.47 m2
The plates material: W 1.4401 (AISI 316L)

Rated power: 704 kW at a temperature difference of 60 °C T

Performance change with decreasing temperature difference T

60 °C = 100%
50 °C = 85%
40 °C = 70%
30 °C = 55%

Flow amount:
heating page: 267 l/min
Heated side: 1690 l/min

Operating pressure: 13 bar
Max. operating temperature: 208°C

More information:

Swimming pool heat exchanger 704 to replace kW Spirec type heat exchanger
stainless design

For floor heating, for heating swimming pool water up to 800 m3 span>
Useful for making hot water
Heat exchanger for solar energy utilization
As a heat pump heat exchanger
For cooling and heating oil

Info

Vonalkód:

5903022400

EAN-kód:

6971107630099

MPN-kód:

NS002600

Weight:

24 kg/pcs
