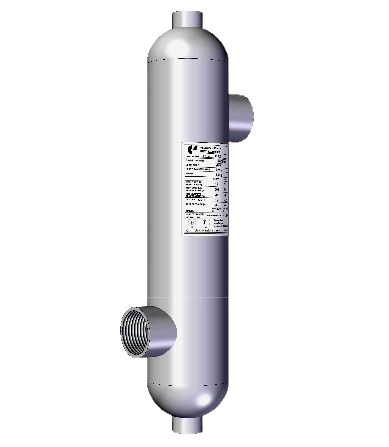

Nordic cylindrical heat exchanger 61kW, for swimming pool heating, made of stainless steel, recommended for replacing the Spirec swimming pool heat exchanger for pools up to 70m3

• Details
• Info

Details

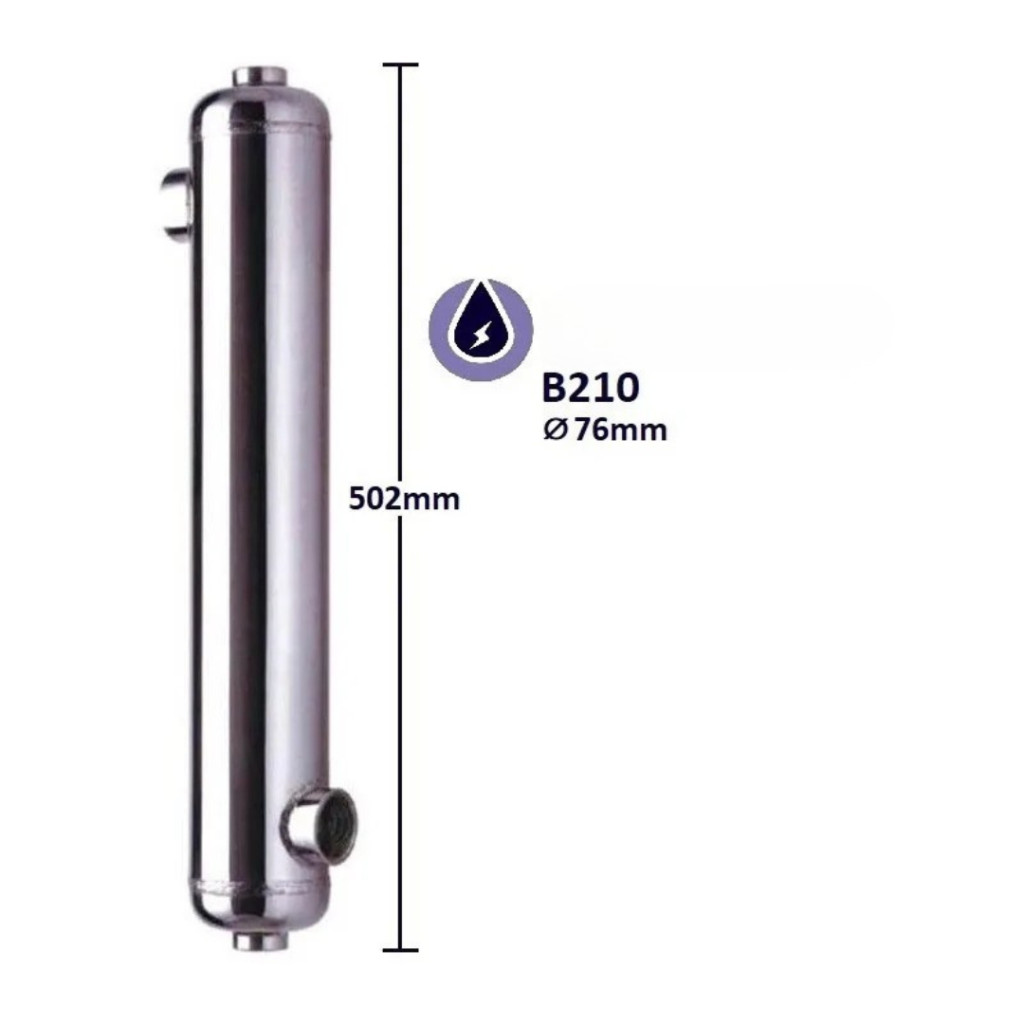

Diameter: 76 mm
Total length: 570 mm
Connectors:
Spiral pipe (heating) side: 2 x 1½" internal thread K1, K4
Sheet (transferred, heat, e.g. pool) side: 2 x 1½" internal thread K2, K3
Heat exchanger surface: 0.44 m2
The plates material: W 1.4401 (AISI 316L)

Rated power: 61 kW at a temperature difference of 60 °C ΔT

Performance change with decreasing temperature difference T

60 °C = 100%
50 °C = 85%
40 °C = 70%
30 °C = 55%

Flow amount:
heating side: 35 l/min
Heated side: 242 l/min

Operating pressure: 13 bar
Max. operating temperature: 208°C

More information:

Pool heat exchanger 61 kW to replace a Spirec type heat exchanger
stainless design

For floor heating, swimming pool water heating
Useful hot water for production
Solar energy utilization heat exchanger
As a heat pump heat exchanger
For cooling and heating oil

Info

Vonalkód:

5903020210

EAN-kód:

6971107630094

MPN-kód:

NS002599

Weight:

3.9 kg/pcs
