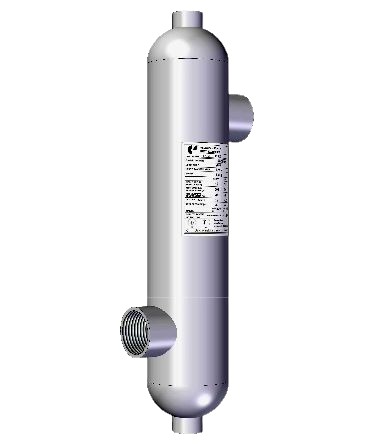

Nordic cylindrical heat exchanger 45kW, for swimming pool heating, made of stainless steel, recommended for replacing the Spirec swimming pool heat exchanger for pools up to 45m3

• Details
• Info

Details

Diameter: 76 mm
Total length: 450 mm
Connectors:

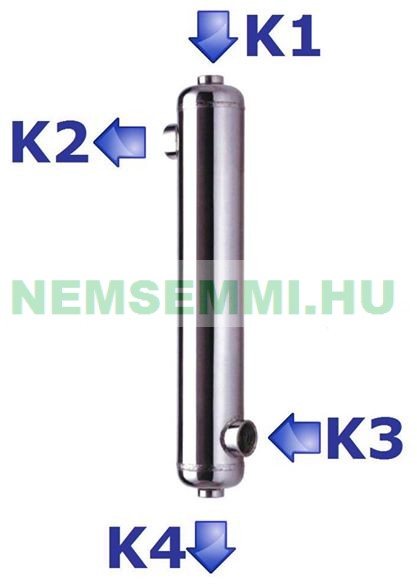

Spiral pipe (heating) side: 2 x 1" internal thread K1, K4
Sheet (transferred, heat, e.g. pool) side: 2 x 1½" internal thread K2, K3
Heat exchanger surface: 0.33 m2
The plates material: W 1.4401 (AISI 316L)

Rated power: 45 kW at a temperature difference of 60 °C ΔT

Performance change with decreasing temperature difference T

60 °C = 100%
50 °C = 85%
40 °C = 70%
30 °C = 55%

Flow amount:
heating side: 32 l/min
Heated side: 237 l/min

Operating pressure: 13 bar
Max. operating temperature: 208°C

More information:

Swimming pool heat exchanger 45kW To replace the Spirec type heat exchanger
stainless design

For floor heating, swimming pool water heating
Useful hot water for production
Solar energy utilization heat exchanger
As a heat pump heat exchanger
For cooling and heating oil

Info

Vonalkód:

5903020155

EAN-kód:

6971107630093

MPN-kód:

NS002598

Weight:

3 kg/pcs
