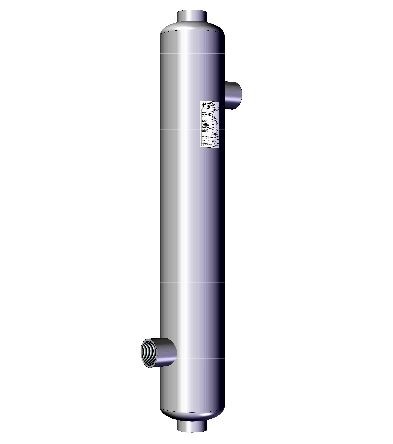

Nordic cylindrical heat exchanger 326kW, for swimming pool heating, made of stainless steel, recommended for replacing the Spirec swimming pool heat exchanger for pools up to 400m3

• Details
• Info

Details

Diameter: 133 mm
Total length: 900 mm
Connectors:
Spiral pipe (heating) side: 2 x 2" internal thread K1, K4
Sheet (transferred, heat, e.g. pool) side: 2 x 2½" internal thread K2, K3
Heat exchanger surface: 2.05 m2
The plates material: W 1.4401 (AISI 316L)

Rated power: 325 kW at a temperature difference of 60 °C T

Performance change with decreasing temperature difference T

60 °C = 100%
50 °C = 85%
40 °C = 70%
30 °C = 55%

Flow amount:
heating side: 114 l/min
Heated side: 847 l/min

Operating pressure: 13 bar
Max. operating temperature: 208°C

More information:

Swimming pool heat exchanger 32 to replace a 5 kW Spirec type heat exchanger
stainless design

For underfloor heating, for heating swimming pool water up to 400 m3 span>
Useful for making hot water
Heat exchanger for solar energy utilization
As a heat pump heat exchanger
For cooling and heating oil

Info

Vonalkód:

5903021200

EAN-kód:

6971107630098

MPN-kód:

NS002597

Weight:

13.9 kg/pcs
