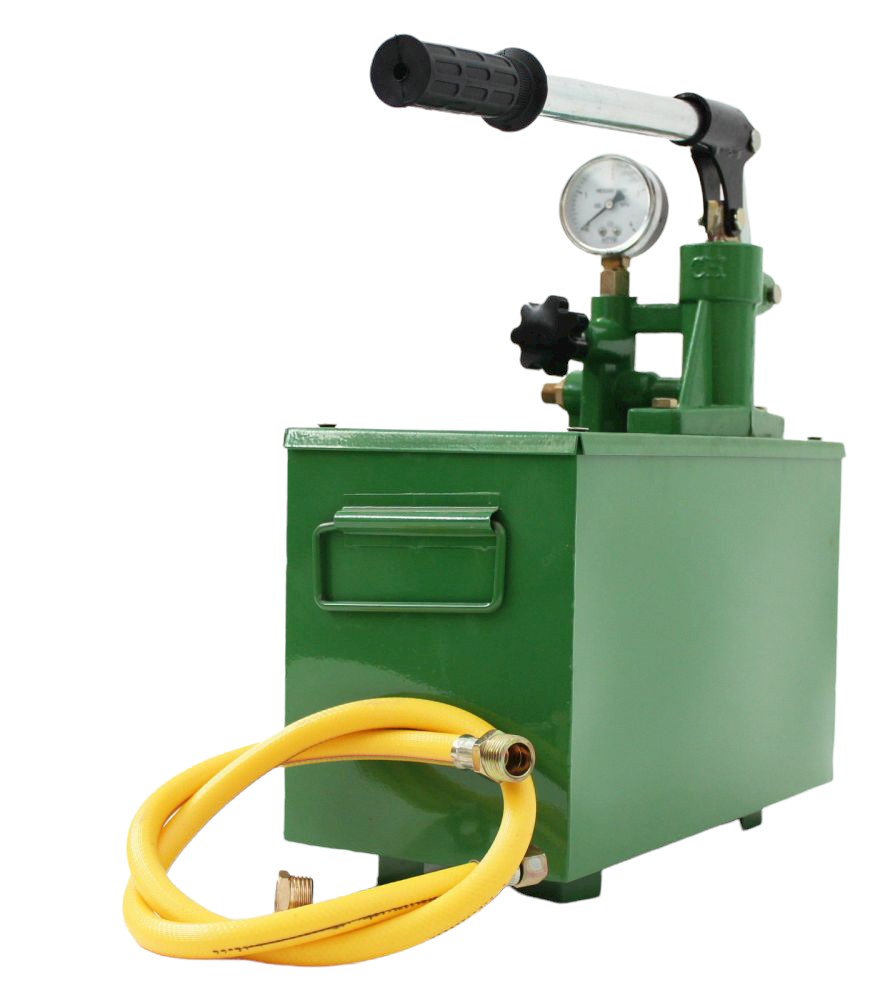

Manual filling pump Test pump solar collector and heating pump with tank Test pump with pressure gauge

Tank test pump

Tank volume: approx. 10 liters
Maximum pressure: 40 bar
Maximum temperature: 45 C
Tank connector: 1/2"
Size : 170x320x410 mm

All in all, a tank priming pump with pressure gauge is a device that allows you to efficiently and safely transfer liquids between tanks and helps you monitor the pressure in the system during the process. This combination allows users to fill tanks accurately and safely, preventing overfilling or potential problems with the system.

Test pump

A tank filling pump with pressure gauge is a piece of equipment that is often used to safely and efficiently fill liquid materials (eg oil, fuel, water, etc.) into or from tanks.< /span>

The tank filling pump:

Function: The tank priming pump transports liquid materials from one tank to another or to a tank. This allows liquids to be transferred efficiently and quickly, making them ideal for filling fuel or oil tanks in vehicles, ships or industrial equipment, for example.

Shutoff Valve: A tank priming pump usually has a shutoff valve to help stop the flow of liquid when the pump is not in use.

Transmission pipe: The transport pipe belonging to the pump allows easy transfer of liquid between the pump and the tank.

The pressure gauge:

Function: The pressure gauge measures the pressure generated by the pump. This provides important information to the user as it allows them to check fluid flow and pressure in the system. Adequate pressure can be critical for safe transfer of fluid and detection of any abnormalities.

Scale and unit: The scale of a pressure gauge usually has bars, PSI (pounds per square inch) or other pressure units, indicating the pressure the pump is generated pressure.

Feedback: The pressure gauge allows the user to ensure the correct pressure during charging and ensure that the whole process be safe and effective.

Test pump with tank for checking the water network or heating system,
for charging solar collector systems.
Tank filling pump with pressure gauge.
