24V 800W + 300W charge controller and magnetic brake for AC windmill. Wind generator + solar panel hybrid controller charging controller

Charge controller for wind turbine and solar panel

Input: 24V AC for 3-phase windmill
Output: 24V DC span>
Maximum power: 800W
Maximum solar panel power: 300W
Maximum input voltage: 60V
Battery connection wire: min 6mm
Maximum distance to battery: 3m
Maximum charging current: 40A
Maximum wind speed: 2500 rpm
Minimum voltage to turn on the charge controller: 15V
Battery charging mode: 25.2V
Maximum battery voltage: 27.9V (above this, the braking function starts)

For indoor use only, the charge controller is NOT waterproof!

Recommended minimum battery: 12V 100A
Lighting diodes meaning: Charging , Battery connected, Charged, Brake. If required, it can even be ordered with an LCD display, so please contact our Customer Service.

Charge controller that brakes the wind wheel when the battery is charged or when the wind speed is excessive.

Size: 30x20x15 cm

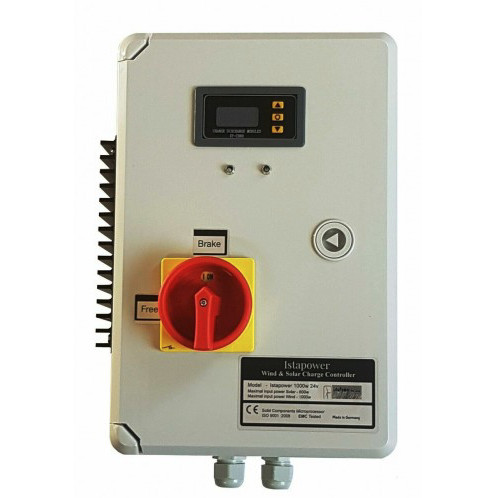

Metal housing design with cooling fins

24V 800W hybrid charging controller for wind generator

Charging controller for a maximum 800 Watt three-phase wind turbine, to which you can connect up to 300 W solar panels.
The charge controller also monitors the overspeed of the wind wheel, so it is an essential tool for the I-700 wind power plant.
The charge controller automatically detects the battery voltage in each case and sets the appropriate output voltage. It is important to choose the I-700 24V wind generator for a 24V battery system, while the I-700 12V wind turbine for a 12V battery system!

It is important that both the windmill and the charging controller are NOT allowed to operate without a battery !
