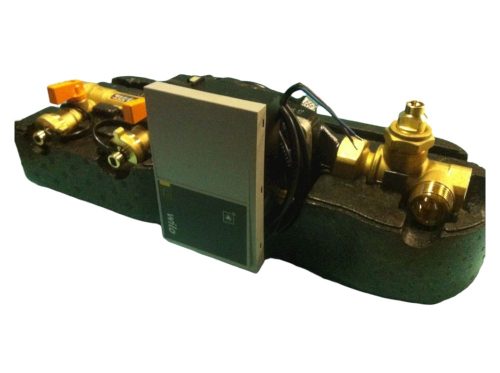

Solar pump station

Pump: WILO ST15/7
Flow rate: 1-10 liters/minute
Connections 3/4"
Max pressure: 10 bar
Maximum temperature: 160°C
EPDM seals,
EPP external insulation box
Wilo ST 15 /7 Eco solar pump
flow meter and regulator
expansion tank connection point ,
6 bar safety valve
thermal insulation cover< /span>
1 thermometer
1 pressure gauge

More information:

Solar pump station

Solar pump station 1 circuit TM 47002581-10 l/min, flow meter and regulator, pump,shut-off tap with non-return valve,filler tap,thermometer
expansion tank connection point.

Attention! The 2-core cable of the pump goes to low-voltage electronics! Under no circumstances should it be supplied with 230V, as this may lead to the electronics burning and also void the warranty!

Correct connection: brown cable to PWM, < strong>blue cable to GND

If the low-current wire is 3-wire /thinner/, then the black wire does not need to be connected, but it must be insulated!

Mass flow: 1.0-10.0 l/min
Max. pressure: 10 bar
Connections: 3/4"

The Solar station is a prefabricated compact unit that contains most of the equipment and fittings necessary for the operation of solar collector systems. By using it, the installation of the solar circuit becomes significantly simpler and professional operation is ensured. A lot of work and space can be saved by eliminating the need to connect system devices to each other.

Solar pump station with 1-sided Tiemme Italian Automata pump with power control for solar collector system
