Solar pump station

Pump: Wilo Yonos Para ST 15/7
Flow rate: 1-10 liter/minute
Connections 3/4"
Maximum pressure: 10 bar
Maximum temperature: 160°C
EPDM seals,
EPP external insulating box
Eco solar pump with PWM control
flow meter and controller
expansion tank connection point,
6 bar safety valve
2 thermometers
1 pressure gauge
air separator

More information:

Solar pump station

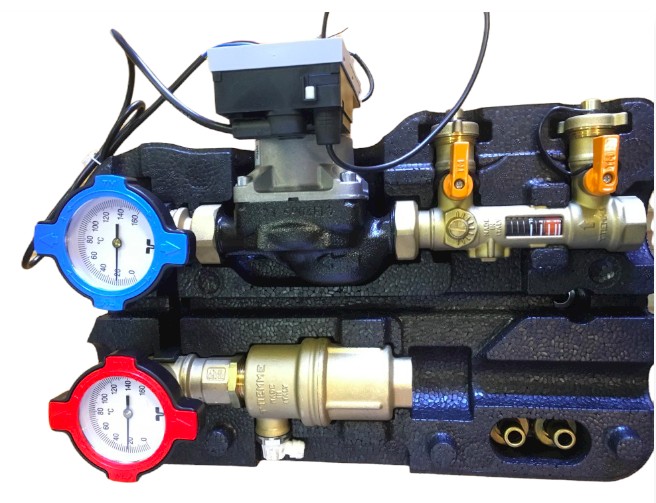

Two-sided pump station, which includes the fittings for the forward and return lines of the solar circuit.
Mass flow: 1.0-10.0 l/min
Max. pressure: 10 bar
Connections: 3/4"
The solar station is a prefabricated compact unit that contains most of the equipment and fittings required for the operation of the solar collector system connecting it can save a lot of work and space.

Attention! The 2-core cable of the pump goes to low-voltage electronics! Under no circumstances should it be supplied with 230V, as this may lead to the electronics burning and also void the warranty!

Correct connection: brown cable to PWM, < strong>blue cable to GND

Solar collector pump station 1-10 l/p 2-sided Wilo circulation pump group insulated + bubble separator + pressure gauge Tiemme
