Thermostat with sleeve for direct measurement of the water in the storage tank and for temperature-dependent switching

Immersion sleeve thermostat

Temperature range: 10-90°C
Switching sensitivity: ±2.5 °C
Electric voltage: 230V 6A
Connector size: 1/2";
Sleeve: Ø8x100 mm
Electrical protection: IP 40

Areas of use: Immersion sleeve thermostats are often used in laboratory chemical reactions or experiments, where stable and precise control of the temperature of liquids is important. It is also used in industrial processes, such as the food and beverage industry or the pharmaceutical industry, where temperature-sensitive processes and materials are present.

Advantages: Immersion sleeve thermostats allow users to precisely and continuously control the temperature. This can help optimize chemical reactions, prevent temperature fluctuations and contribute to process stability and reproducibility.

It is important to note that immersion thermostats can come in different designs and sizes to meet different application needs.

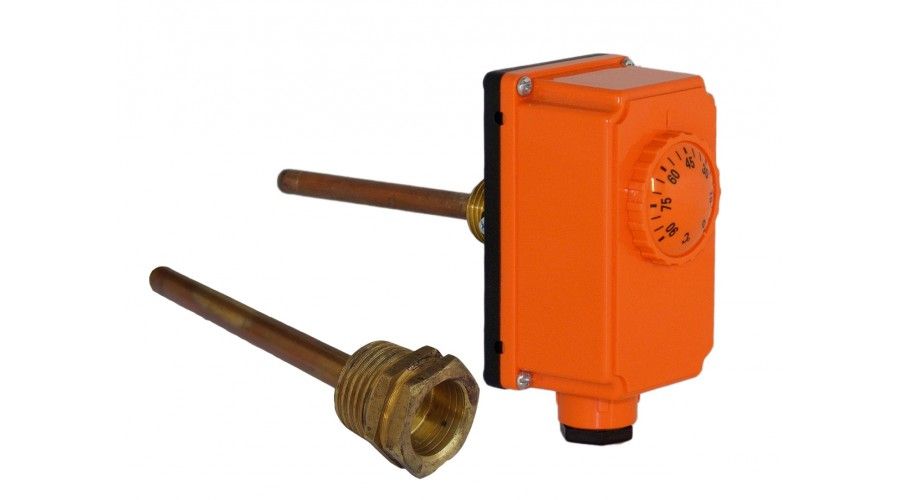

Thermostat with immersion sleeve with 1/2" connector

The immersion sleeve thermostat is a device used to accurately and stably control the temperature of liquids. Typically, a temperature sensing sleeve (immersion sleeve) is placed in a liquid or container and this sensor is connected to a heating element or cooling element.

When the temperature sensor of an immersion sleeve detects the temperature of the liquid, it transmits the received data to the built-in control system. This system then controls the heating or cooling to keep the fluid at the desired temperature. A thermostat allows the user to set the desired temperature and the device automatically regulates the intensity of heating or cooling in order to achieve this goal. It provides an open-close contact
Its typical task is the regulation of electric heating pads
Antifreeze of tanks
