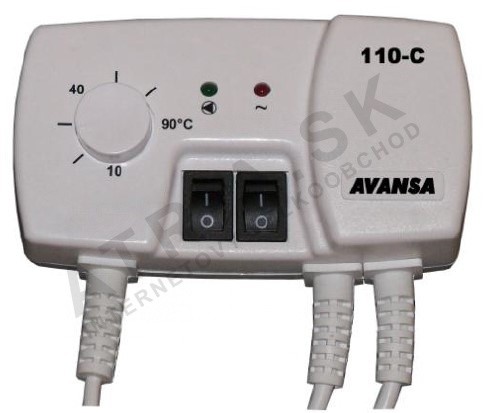

C110 Pump control temperature difference switch controller 230V 50Hz

Pump control

Power supply: 230V 50Hz ± 10%
Temperature setting range: 10 .. . 90 °C
Hysteresis: 5 °C
Power consumption: < 2W
Operating temperature: -10 ... + 50 °C
< span style="color: #000000;">Connecting cable: 3 x 0.75 mm
Sensor length: 1.2 m
Dimensions: 75 x 50 x 132 mm
Graduation class: IP20

Thermostat for pumps and for boilers

The C110 thermostat is designed to control a heating circulation pump. The function of the thermostat is to turn on the pump whenthe temperature
exceeds the set value and shutdownwhen the boiler cools down. This prevents excessive operation of the pump, which allows you to save electricity (depending on the use of the boiler) you can save up to 60%) and thus extend the life of the pump. This increases reliability and reducesmaintenance costs. The switching temperature of the pump can be set using a potentiometer(in the range of 10 ... 90 °C ). The pump switches off when the measured temperature drops by 5 °C from the set temperature. temperature. In addition to the potentiometer, the controller also has 2 switches.
The first one is used to turn the controller on and off (red signal). The secondis used to turn on the pump manually (green signal).

LED functions:

Green LED - the device is in automatic operation mode, the set switch the pumps on / off depending on the temperature.

Green and red LED - the device is in automatic mode, the pump is on regardless of the set temperature. The device is protected by the fuse inside the cover.
