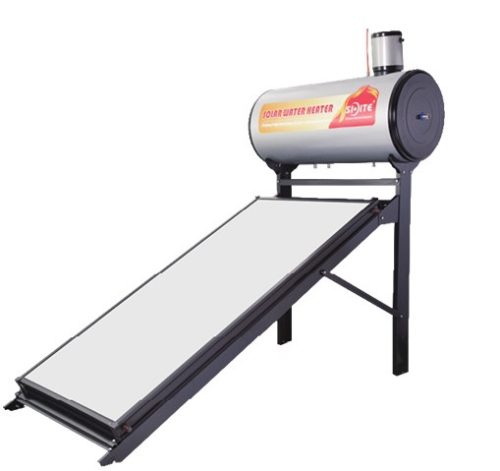

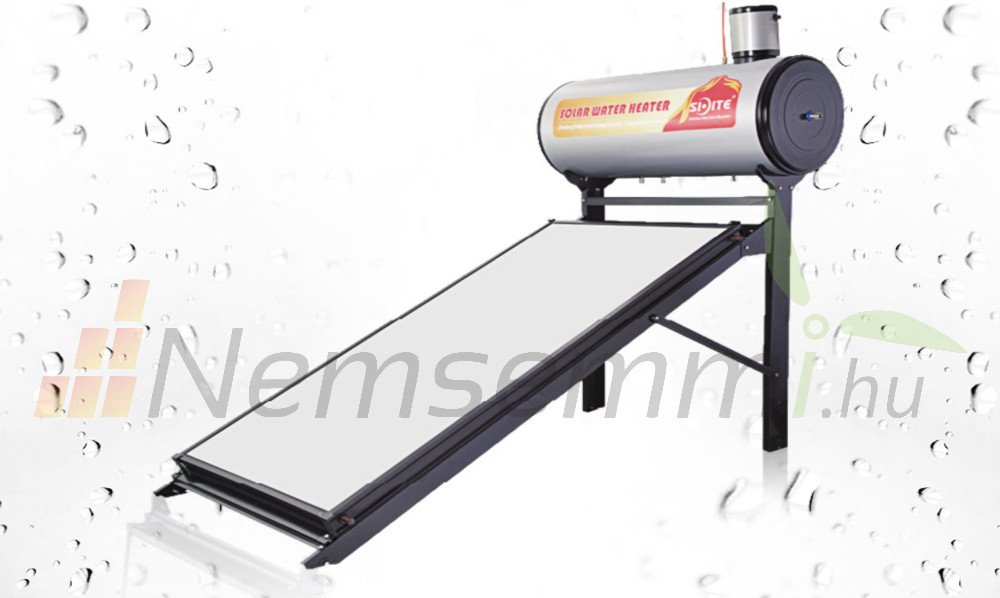

Pressure-resistant system with flat collector

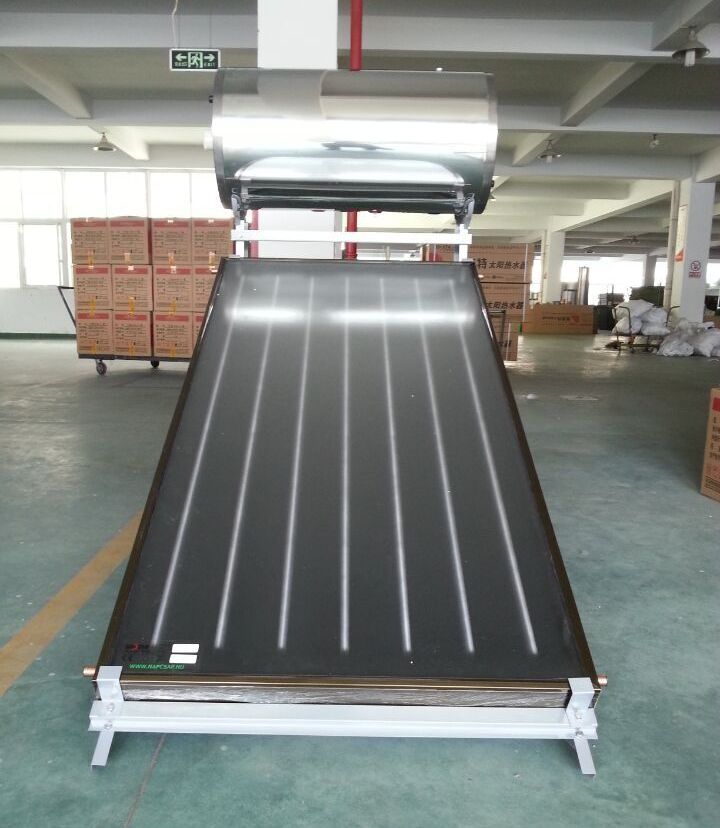

Pressure-resistant, stainless flat collector equipped with a 150 liter tank

It comes with a stainless support frame for a horizontal surface.
After the tank is pressure-resistant, so you can release the mains pressure and you don't have to mount it high up like the cheaper,unpressurized model, where the hot water "presses" the tank its height ensures it, as far as it knows!

Ski collector size: 1000x2000 mm
Ski collector thickness 80 mm
Total collector surface: 2.00 m2
Aperture surface: 1.90 m2
Glass thickness: 3.6 mm
Glass thickness: microprism low-metal, heat-treated safety glass

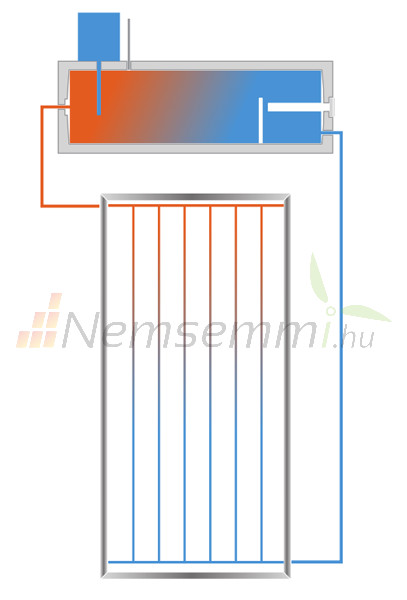

Pipe: copper with harp system, with ultrasonic welding
Collection pipes: pure copper φ 22 mm
Harp pipes: pure copper φ 8 mm

Tank diameter inside 380 mm Outside: 480 mm
Tank material inside: stainless! Exterior: stainless!
Maximum pressure: 6 bar.
Polyurethane insulation thickness: 50 mm

Support structure material: stainless steel

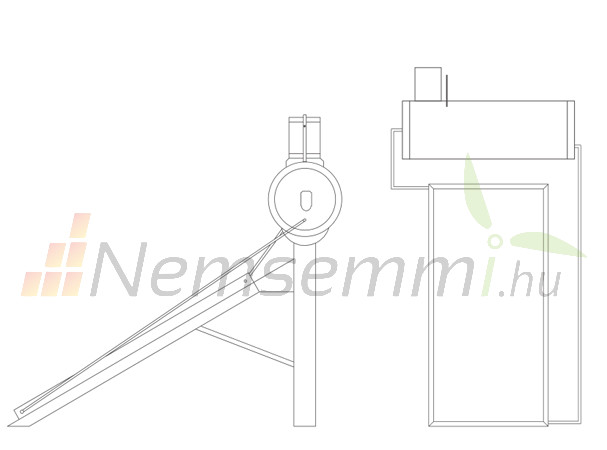

Collector tilt angle: 30 degrees< /p>

In addition to the assembly, 2 pieces of stainless ribbed pipe are included, which must be used to connect the collector to the tank.

Warranty: 2 years

PACKAGE SIZE (four boxes):

Tank 137x52x52 cm 20 kg
Flat collector 201x106 cm 32 kg< br />Frame 200x12x16x cm 8 kg

More information:

Pressure-resistant flat collector equipped with a 150 liter tank

Maximum pressure: 6 bar.
Plane collector: 1 pc 2 m2
Includes an inox support frame for a flat surface, which can be converted to a sloping roof.

Flat collector system pressure-resistant 150 l stainless steel container inside and out, stainless support structure

Pressure-resistant, stainless flat collector equipped with a 150 liter tank

Pressure-resistant flat collector equipped with a 150 liter tank
