Wind wheel

Maximum power: 1200 W
Nominal power: 1000 W< br />Voltage alternating current, 24V
For rotor rotation required wind speed: 2m/s
Maximum wind speed: 60m/s
Nominal power output: 12.5m/s
Number of blades: 3
Rotor diameter: 210 cm
Rotor material: Polyamide with 30% glass fiber!
Length of rotor blades: 100 cm
Maximum noise level: only 40 dB
Weight: 20 kg

In connection with the product, we would like to draw your attention to the fact that the windmill may only be operated with a charge regulator,
in which the speed-dependent engine brake is built-in, which provides the
wind wheel against overspinning from the continuously connected battery braking through the generator, which in this case functions as a magnetic brake.

More information:

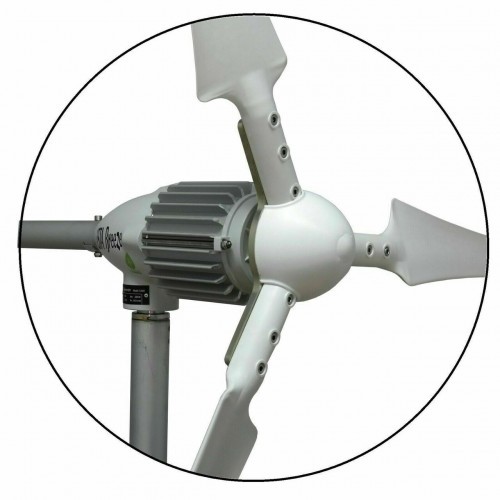

24V Breeze I-1000 wind generator

Robust, with fiberglass reinforced plastic blades
Maintenance-free, gold-plated contacts, carbon brush-free generator< /span>
With gold-plated sliding contacts to prevent wires from twisting!
The house is made of one piece, which makes it particularly durable.
We recommend a 1 1/2" pipe pole for installation, see our products between.

2 year warranty!

Wind generator wind wheel wind turbine 3 blades max. 1200W AC 24V Breeze i-1000 wind energy 210 cm rotor diameter. 2 year warranty!

Wind wheel

24V Breeze I-1000 wind generator
