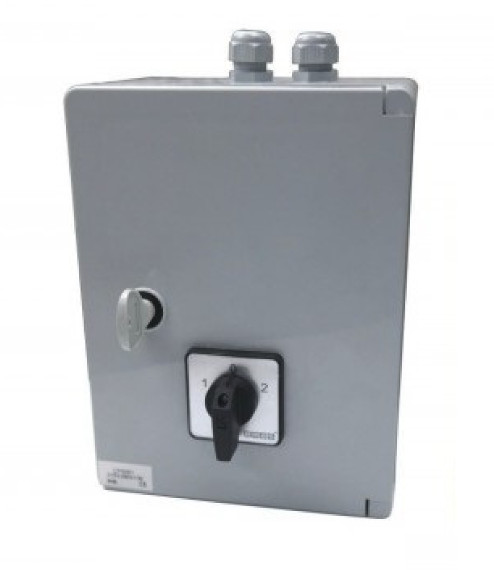

Emergency stop for windmills, which can also be used as a short-term braking device. Switches up to 40A max

• Details
• Info

Details

Disconnecting switch

Wind power cut-off switch
Maximum current on 3 phases: 40A
Maximum input: 1pc
Size: 210x280x140 mm
Waterproof classification: IP20

More information:

< span style="color: #000000;">Electrical isolation switch for horizontal axis wind generator

With this you can disconnect the wind turbine from the charge regulator. This results in a short circuit at the wind wheel, which forces the blades to brake.
We use your short stroke brake until the wind wheel stops. Then either dismantle the wind generator or brake the rotations mechanically.

ATTENTION! Braking by the switch can only be used for stopping, it cannot be used as a service brake! If the equipment is short-circuited for an extended period of time, it can lead to burning out of the stator of the wind wheel!

Info

Vonalkód:

00000802

EAN-kód:

2020022714101

MPN-kód:

NS002397

Weight:

2 kg/pcs
