Wind wheel

Rated power: 1500 W
Rated voltage: 24V
Current: 55A
Number of blades: 5
Rotor diameter: 220 cm
Rotor blade length: 107 cm
Rotor material: Polyamide with 30% glass fiber!
Maximum noise load: only 40 dB

In connection with the product, we would like to draw your attention to the fact that the windmill may only be operated with a charge controller that has a speed-dependent engine brake built into it, which ensures that it is powered by the continuously connected battery braking of the wind wheel against overspinning via the generator, which in this case functions as a magnetic brake.

More information:

Wind generator
< span style="font-size: 14px; color: #000000;">

The wind generator can be used universally in low, medium and strong winds.
Characteristics:

3-phase permanent magnets (High efficiency thanks to strong permanent magnets (NdFeB magnets, temperature resistant to 150 °)
Aerodynamic design
Powder-coated aluminum housing
Low noise
UV-resistant plastic + 30% fiberglass blades
Power transmission via a slip ring, thus preventing the cable from twisting
Durable and low maintenance

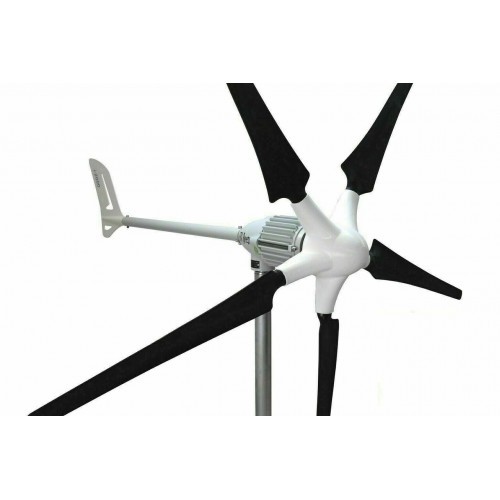

Wind generator 5-blade carbon wind turbine max. 1500W 24V Breeze i-1500 wind energy 220 cm rotor diameter
