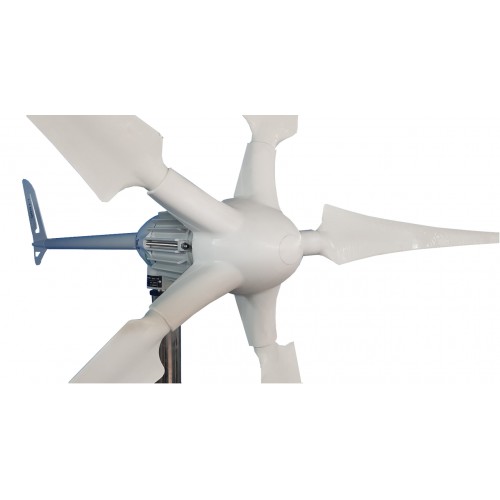

Wind generator 5-bladed wind turbine max. 1500W 24V Breeze i-1500 wind energy 220 cm rotor diameter

Windwheel 1500W

Rated power: 1500 W
Rated voltage: 24V
Current: 55A
Number of blades: 5
Rotor diameter: 220 cm
Rotor blade length: 107 cm
Rotor material: Polyamide with 30% glass fiber!
Maximum noise load: only 40 dB

Performance range: We offer versions developed for 12V, 24V and 48V systems, so the system can be fully customized to your needs and home energy use.< /span>
Paddles: Available 3 and 5 blade design with optimized aerodynamics to maximize performance and minimize noise.
Maintenance-free design: Our generator is carbon brush-free, so maintenance costs are minimal. Gold-plated contacts ensure long life and reliable operation.
Sliding contacts: We have gold-plated sliding contacts to prevent wires from twisting, which they ensure trouble-free operation and a long service life.
Quiet operation: Our wind generator is extremely quiet, with a maximum noise level of only 40 dB. This allows installation in any residential environment without disturbing your surroundings. you can effectively use the available wind energy in your home.
Environmentally friendly energy: The our horizontal axis wind generators offer environmentally friendly solutions for home energy supply, helping you on your way to self-sustainability.

Wind generator
< span style="font-size: 14px; color: #000000;">

Environmentally friendly energy saving and transition to self-maintenance can be the key to horizontal-axis, 5-blade wind generators, which are excellent for home installation. These generators efficiently utilize the energy of the wind and ensure a reliable and clean power supply.
Maintenance-free, gold-plated contacts, carbon brush-free generator.
With gold-plated sliding contacts to prevent wires from twisting!
Choose reliability and sustainable energy with the horizontal-axis, 5-blade wind generator to meet your home energy needs. With gold-plated contacts and a maintenance-free design, this generator can be the optimal solution for a self-sustaining lifestyle.

In connection with the product, we would like to draw your attention to the fact that the windmill may only be operated with a charge controller in which the speed-dependent engine brake is integrated, which ensures the overspeed braking of the wind wheel via the generator, which in this case functions as a magnetic brake.

The wind generator can be used universally in low, medium and strong winds.
Characteristics:

• 3-phase permanent magnets (High efficiency thanks to strong permanent magnets (NdFeB magnets, temperature resistant to 150 °)
• Aerodynamic design
• Powder-coated aluminum housing
• Low noise
• UV-resistant plastic + 30% fiberglass blades
• Power transmission via a slip ring, thus preventing the cable from twisting
• Durable and low maintenance
