Mast support column for i700, i1000, i1500, I2000 wind wheel 4 meters, 40 kg load capacity, with lifting hinge wind generator wind wheel wind turbine

• Details
• Info

Details

Wind wheel mast

Mast with a load capacity of 40 kg.  for our i1000, i1500, I2000 wind wheels

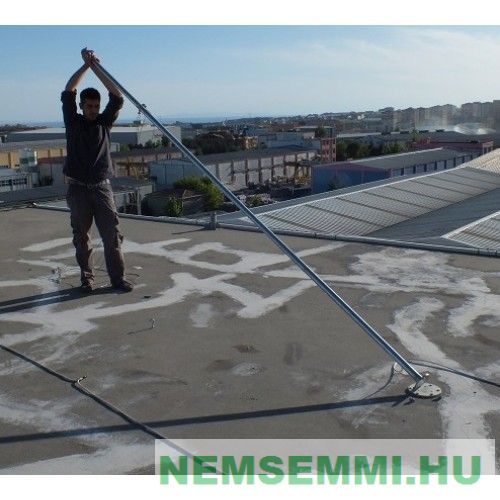

Easy to set up the hinge integrated in the base.
The upper column member is designed to connect 3 wire ropes
Diameter: 62 mm
Wall thickness: 2.5 mm
Length: 4 meters

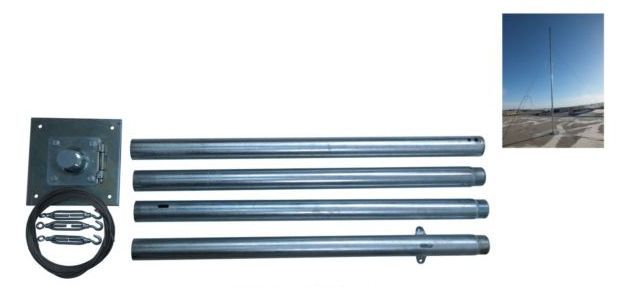

Wire rope 3x10 meters with 3 tensioners
Load capacity: 40 kg
Delivery size: 110x30x15 cm
It can be extended to 10 meters by purchasing additional columns.

More information:

Wind wheel column

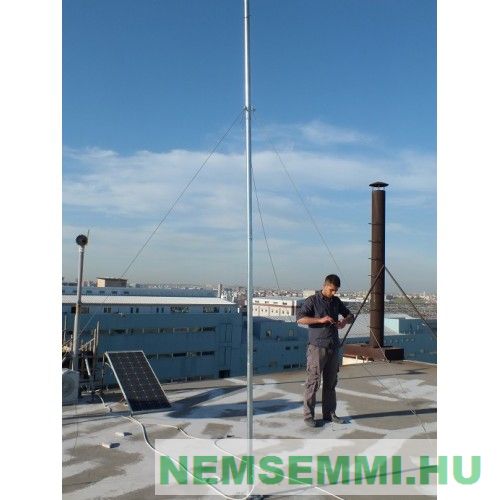

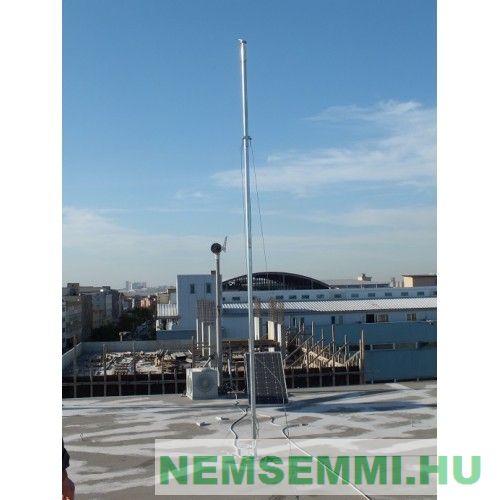

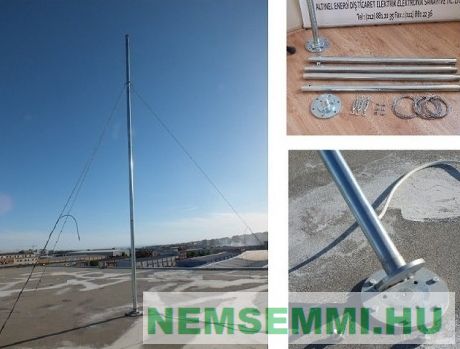

Galvanized steel column for easy installation of the wind wheel.
Galvanized steel column for easy installation of the wind wheel.
With wire rope tensioner, lower hinge, with which you can easily decide the column.
The column can be used up to a 40kg wind wheel, so it can be used for the following models: i700, i1000, i1500, i2000
There is no factory solution for our larger wind generators. Recording them requires preliminary planning and an assessment of the local conditions.



Info

Vonalkód:

00109116

MPN-kód:

NS002412

Weight:

20 kg/pcs
