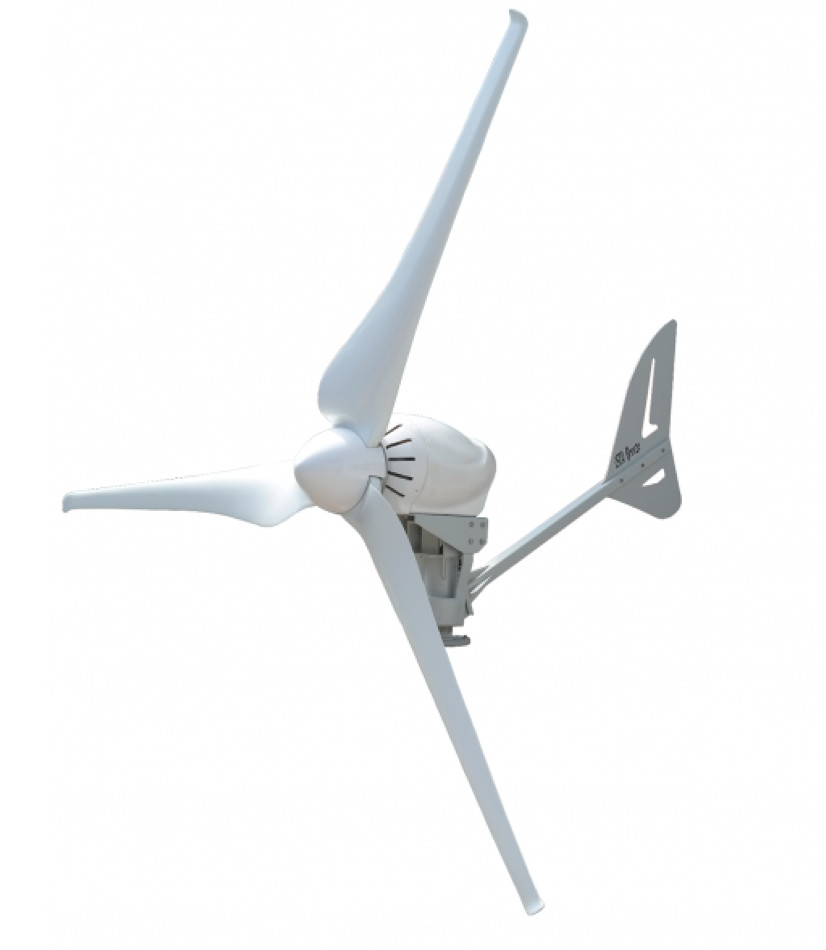

Offgrid wind wheel 4kW

Wind wheel maximum power: 4000 W
Nominal power: 3800 W
Voltage alternating current, 48V
Rotor wind speed required for rotation: 2.9 m/s
Operating speed: 120-440 rpm
Maximum speed 600 rpm
Automatic paddle control, At a wind speed of 13 m/s (rotor tilt)

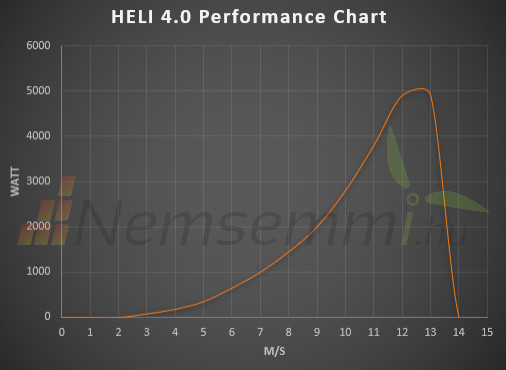

You can find the wind data required to deliver the nominal power in the pictures.
Number of blades: 3
Generator: 3-phase, permanent magnet design (NdFeBO magnets, resistant up to 150 °C, weight 31 kg)
Efficiency: 92%
Rotor diameter: 300 cm
Rotor material: Polyamide with 30% glass fiber!
Maximum noise load: only 40 dB
Weight: 109 kgMore information:

High-performance household wind generator

Wind generator with a maximum output of 4 kW, whose output and size no longer belong to the hobby category. Recommended for charging higher performance batteries. A wind turbine that supplies the entire household at normal wind speed.
Maintenance-free, modern permanent magnet generator
Robust, with fiberglass reinforced plastic blades
Maintenance-free, gold-plated contacts, carbon brush-free generator
The wind generator is equipped with gold-plated sliding contacts to prevent the wires from twisting!
The house is made of one piece, which makes it particularly durable.
2" pipe column for installation we recommend.

2 year warranty!

Wind generator, wind turbine max. 4000W DC 48V Breeze H-4000 offgrid wind power with 300 cm rotor diameter. 2 year warranty!

Offgrid wind wheel 4kW

High-performance household wind generator
