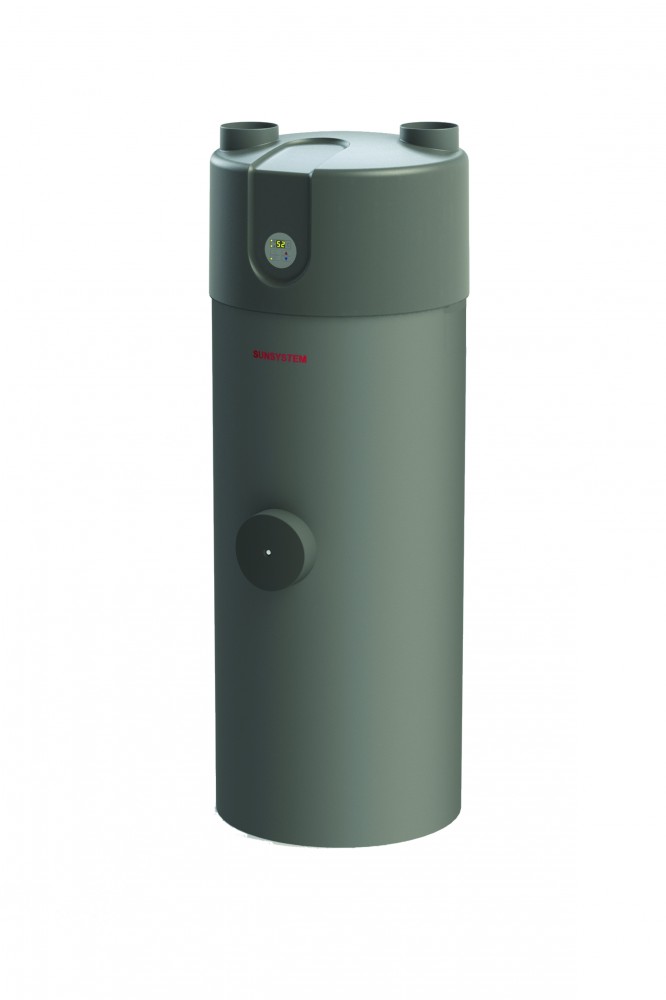

300 liter heat pump boiler with hot water storage heat pump. Heat pump consumption: 440W

Heat pump boiler

Technical data of the heat pump:
Vertical installation
External appearance: RAL 9006 gray color
Volume: 200 l
COP: 3.7
Energy efficiency class: A+
Heating power: 1850W, including the electric heating insert 3850W
Heat pump consumption: 440W
Ambient temperature: 5°C - 35°C
Maximum hot water temperature: 60°
Refrigerant type: R134A
Refrigerant amount: 1.3 kg
Air exchange per hour : 4-500 m3
Diameter: 675 mm
Height: 1880 mm
Tank protection: enameled
Nominal pressure: 10 bar
Test pressure: 15 bar
Safety valve: 8 bar
Maximum operating temperature 60 °C
Additional heating element: 2x1000W
Insulation : 50 mm
Connectors: cold-hot water 1"
Circulation connection option: 3/4"
Operating noise: 61 dB
Weight: 130 kg

More dimensions on the drawing!

Indoor design. Place it in the basement or garage and utilize the heat content of the ambient air and heat the water in the boiler up to 60 degrees with little energy.
The heat pump sucks in the air, extracting the heat from it, and on the other side it blows out the cooled air, which can even be led outside. In the meantime, the moisture content of the inhaled air condenses, thus drying it.
It is also equipped with an additional electric heating pad in case of emergency.
Equipped with an optional extra heat exchanger also a version in which the extra heat exchanger can be attached, e.g. also for solar collectors.

Connecting it is as simple as an electric water heater, and all you have to do is plug it into the socket, no air conditioning technician is required.

Warranty: 2 years!

General data:
- Standing design
- Complex corrosion protection the glass-ceramic internal and replaceable anode provides
- 50 mm thick CFC-free polyurethane ensures minimal heat loss and energy-saving operation
- The cleaning opening allows maintenance of the water heater
- Adjustable feet are useful in case of uneven ground
- Circulation pump connection option (may be necessary for three-wire water supply)
- Equipped with a safety valve
- COP value, i.e. in the ideal case it produces so much more thermal energy than the energy supplied : 3.7
