HMV container

Volume 500 liters
Size: 1895 x 750 mm
Tank: Enamelled
Nominal pressure in the tank 10 bar
Insulation: 50 mm
Maximum operating temperature 95 °C
Heat exchanger surface: 4.6 m2
Heat exchanger power: 130 kW
Maximum operating temperature: 110 °C
Nominal pressure in the heat exchanger: 16 bar
Net weight : 195 kg
Thermostat installation preparation
Heating insert installation preparation

More information on the drawing!

Features :
- Exclusive design
- Large amount of warm water
- Large amount of magnesium anode
- High efficiency thick polyurethane insulation
- 8 bar safety pressure valve
- The product tested according to the strictest requirements
- titanium-ceramic coating tested at 15 bar inner container

PARTS:
1 – Aesthetic PVC cover in RAL 9006 color
2 – High efficiency thermal insulation
3 – Thermometer
4 – Anodic protection (DIN 4753-6)
5 – Electric heater
6 – Water tank made of low-carbon steel
7 – Titanium enamel (DIN 4753-3)
8 – Inspection opening with flange
9 – Thermostat with built-in heat protection
10 – Safety valve, 8 bar
11 – High efficiency S1 tube snake< /p>

Important note: For the installation of extra large heat exchanger tanks and heat pumps, always ask for help from a professional. Choosing the right size and capacity storage and correct installation is essential to achieve optimal operation and efficiency. The specialist can assess the needs of the home and recommend the most suitable storage tank and heat pump for the specific situation.

More information:

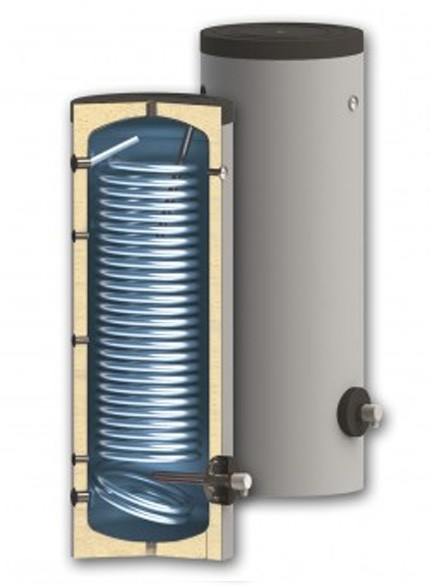

1 narrow DHW tank with heat exchanger with extra large surface hose

Extra large heat exchanger storage tanks are hot water storage tanks that have a larger capacity and provide the possibility to connect heat pumps. These tanks can be particularly useful in households or buildings where there is a higher demand for hot water and heat pumps can be used efficiently for heating and hot water supply.
It is particularly suitable for utilizing the heat produced by a solar collector or a heat pump, because a solar collector and a heat pump cannot produce as hot water as a boiler, so the length of the heat exchanger and surface.
With an increased pipe snake surface - the height is compensated by the smaller diameter of the water heater; ideal for multi-consumer heating, solar collector and heat pump systems. It can also be ordered with an electric heater as an option.

General data:

High efficiency thermal insulation and outer PVC cover in RAL 9006 color..
Temperature sensor multi-position mounting. Complex corrosion protection with titanium enamel and anode protection.
All connections are internally threaded.
Easy to install.
Revision opening.
High efficiency thanks to the increased pipe snake surface.
It can be equipped with an electric heater in a selectable output of 3kW; 4.5kW; 6kW, 7.5kW.

500 liter narrow SunSystem 1 heat exchanger stationary, DHW storage with extra large heat exchanger for solar collector or heat pump. Domestic hot water tank, glass-ceramic coating

HMV container

1 narrow DHW tank with heat exchanger with extra large surface hose
