Heat pump compatible 250/60 boiler Indirect storage with buffer tank combined with heat exchanger built into DHW

Hmv and buffer in one - heat pump

Volume: 250/60l
Version: standing
Number of heat exchanger: 1

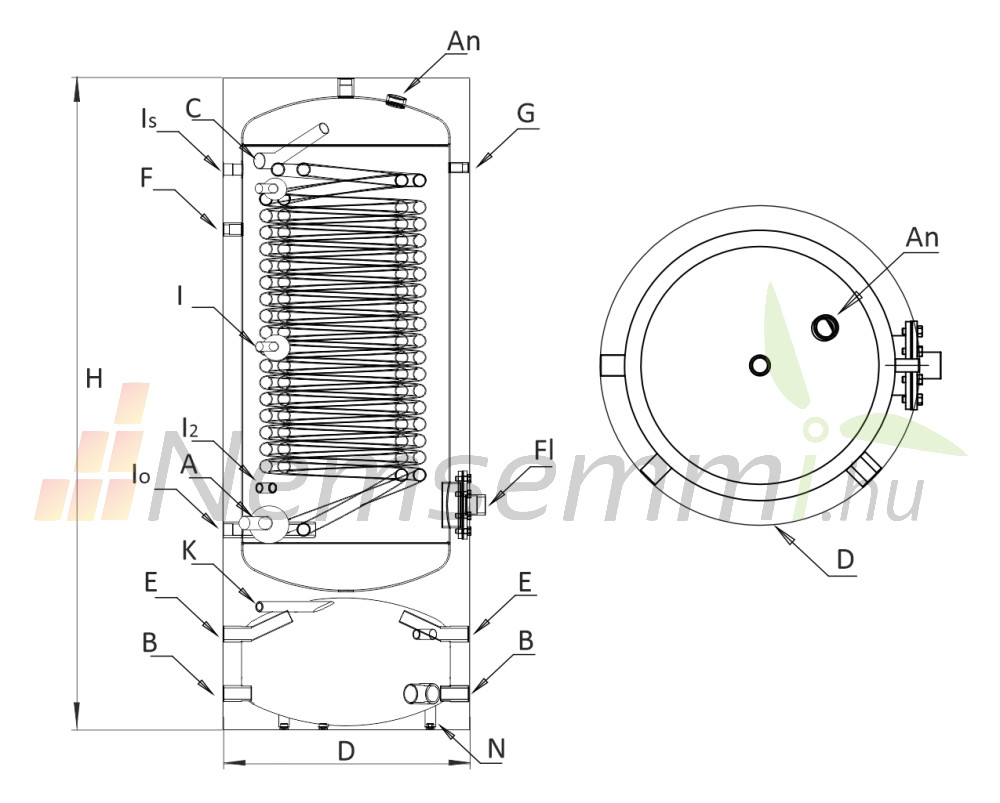

Diameter: 650 mm
Tilt height: 1910 mm
Height: 1720 mm
Height: 1585 mm
Operating pressure / heat exchanger: 16 bar / 110°C
Connectors: cold-hot water 1"
Weight: 215 kg

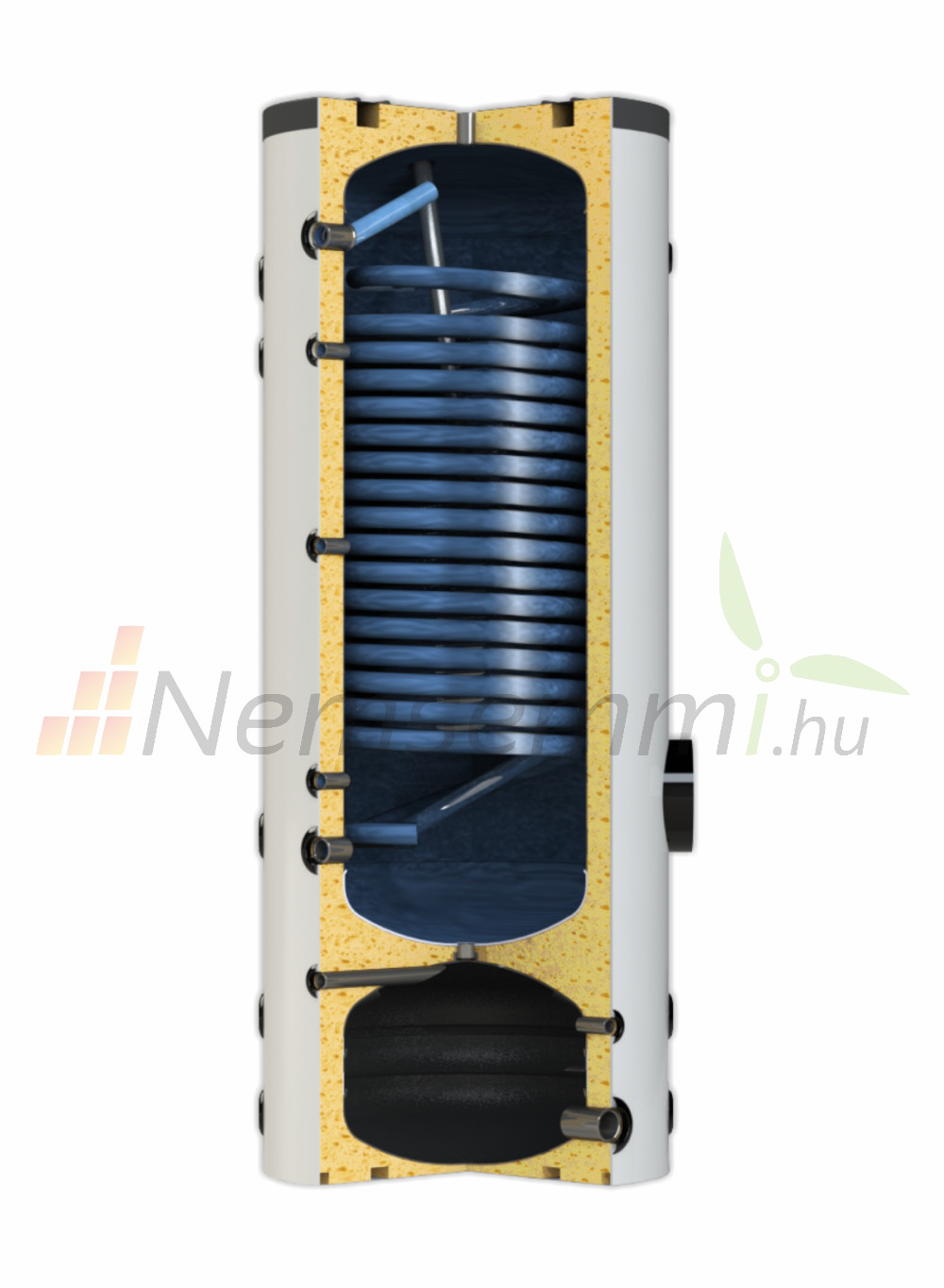

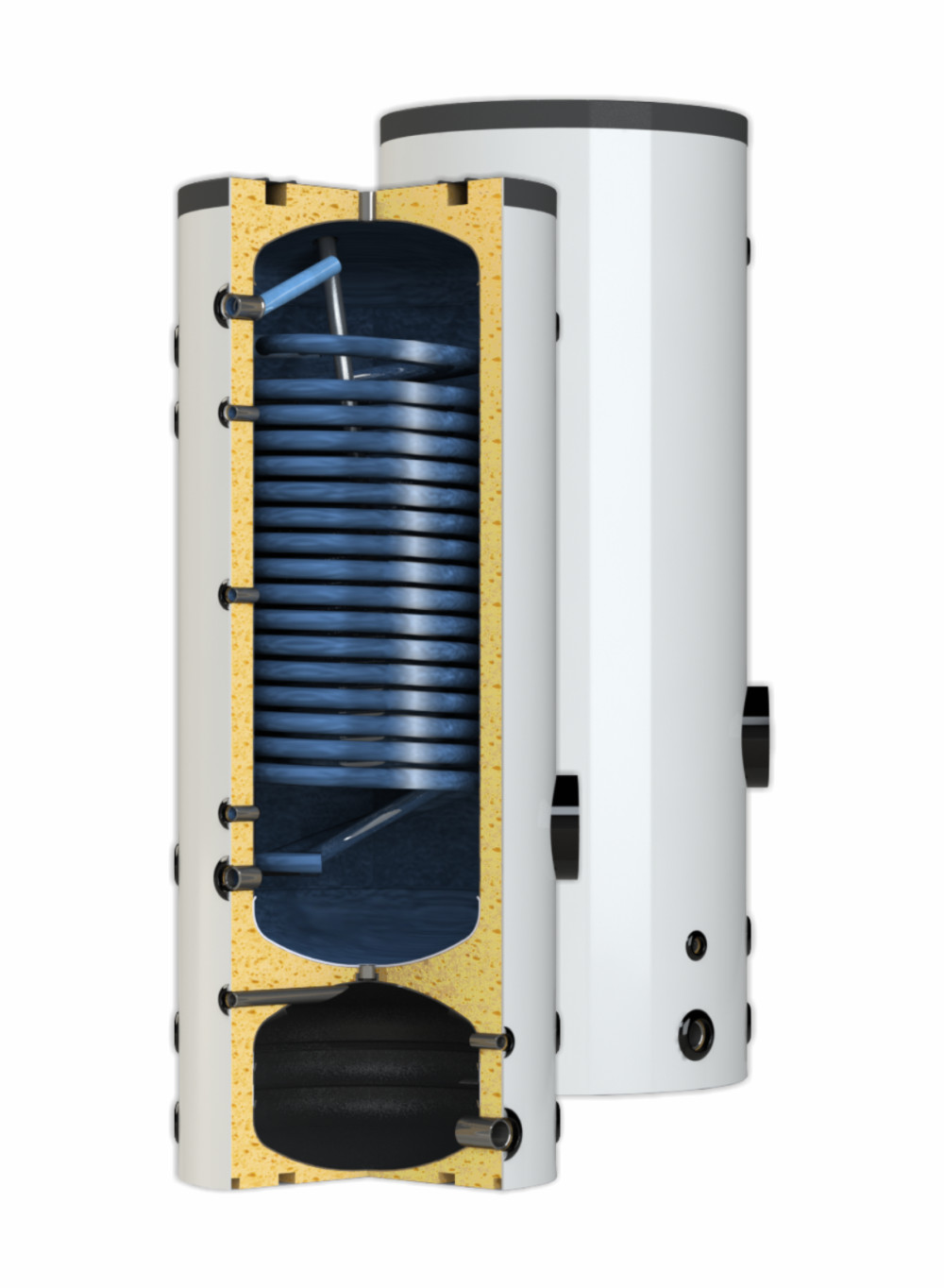

The tank consists of two parts: a 60 liter buffer tank and a 250 liter domestic hot water tank. This combined design allows for space-saving placement, especially in narrow or small rooms.
The safe and reliable operation of the tank is guaranteed by tests carried out during strict quality control processes. The maximum operating temperature and pressure values ​​ensure that the tank works efficiently in all conditions.
The SWPH 250/60 tank is equipped with a recirculation connection, so that hot water is continuously available at the tap without having to release cold water. from the system. In addition, the measuring points on the side of the tank allow you to check and monitor the temperature.

As part of the standard equipment, the tank comes with a 3-year manufacturer's warranty against rusting and water leakage. The equipment belongs to the "C" energy class, so its energy efficiency is excellent.

< /span>

Main features:

• Two tanks in one: The 250 liter HMV tank with an enameled inner surface and extra large it has a heat exchanger with a heat transfer surface for quick heating. The 60 liter buffer tank helps stabilize the heating system and optimize heat production.
• Space-saving: The tanks built on top of each other are compact, with a diameter of only 65 cm, so they also fit in small spaces.
• Reliable and durable: Tanks are made of high quality steel, 50mm thick PU with insulation and PVC outer covering. The DHW tank undergoes a pressure test of 15 bar and the heat exchanger 25 bar during production.
• Hygienic: The enameled inner surface and cathode/anode corrosion protection ensure hygienic hot water supply.
• Versatile: The buffer tank can be used in both heating and cooling mode, 5-95 in the temperature range between °C.
• Energy-saving: The equipment belongs to energy class "C", so it ensures energy-saving operation.

Additional benefits:

• Recirculation connection for immediate availability of hot water
• Measuring points suitable for connecting a thermometer
• Possibility of installing an electric heating pad in the buffer tank (for an extra charge)
• 3-year manufacturer's warranty against tank corrosion and water leakage

SUNSYSTEM SWPH 250/60 is an ideal choice:

• For heat pump systems
• For small spaces
• Those looking for a reliable and durable DHW and buffer tank
• Those who want an energy-saving solution

250 liter 1 heat exchanger heat pump boiler

The expected production time of the goods is 2-3 months.

SUNSYSTEM SWPH 250/60 is an innovative, standing tank that combines domestic hot water (DHW) storage and a buffer function. The product is ideal for heat pump systems, but can also be operated effectively with other heat sources. The device has a titanium enameled inner surface that provides effective protection against corrosion and is thermally insulated for effective heat retention. to connect. Thanks to this, it heats up quickly and provides a sufficient amount of hot water.
All in all, the SUNSYSTEM SWPH 250/60 combined hot water tank can be an excellent choice for both home and commercial use, ensuring reliability, efficiency and hygienic hot water supply.
