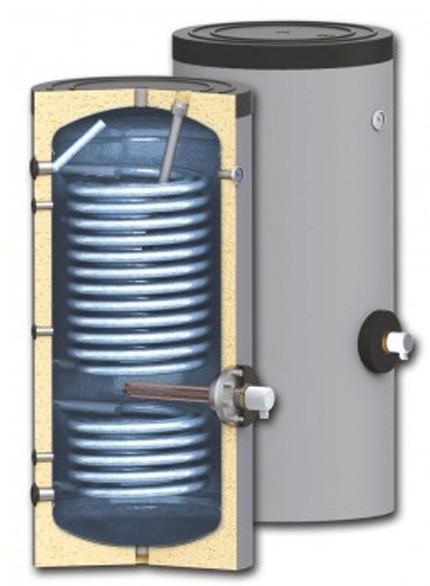

500 liter SunSystem 2 standing water heater with heat exchanger, DHW storage with extra large heat exchangers for solar collector or heat pump. Domestic hot water tank, glass-ceramic coating

HMV container

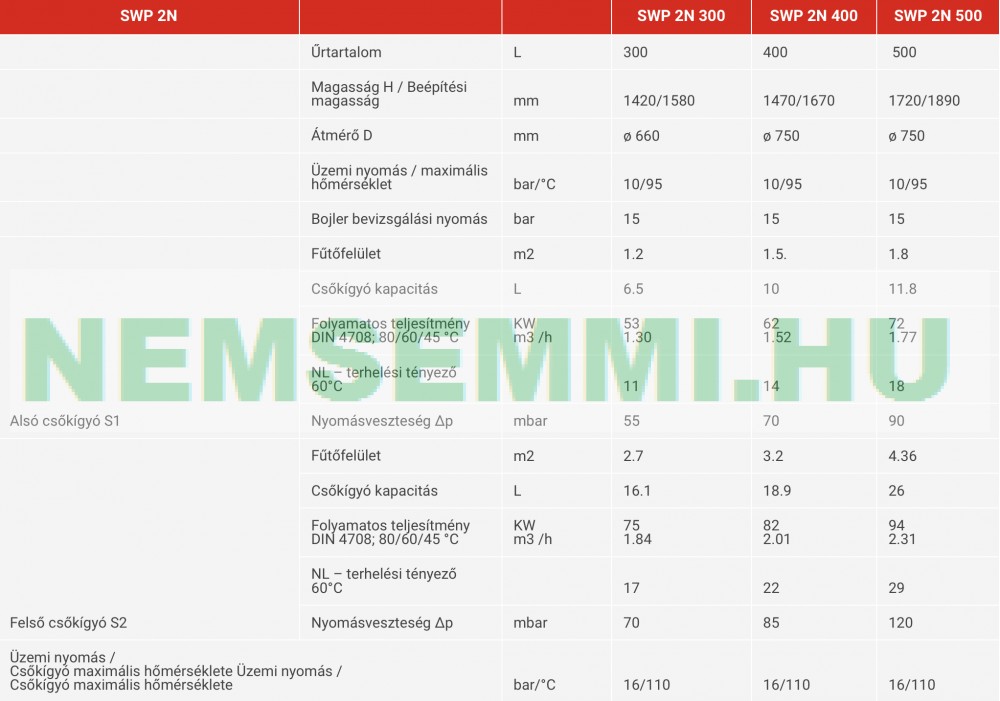

Volume 500 liters
Size: 1720 x 750 mm
Tank: Enamelled
Nominal pressure in the tank 10 bar
Insulation: 50 mm
Maximum operating temperature 95 °C
Lower heat exchanger coil surface: 1.8 m2
Heat exchanger output: 72 kW
Maximum operating temperature: 110 °C
Nominal pressure in the heat exchanger: 16 bar
Upper heat exchanger coil surface: 4.36 m2
Heat exchanger power: 94 kW
Maximum operating temperature: 110 °C
Nominal pressure in the heat exchanger: 16 bar
Net weight: 236 kg
Thermostat installation preparation
Heating pad installation preparation

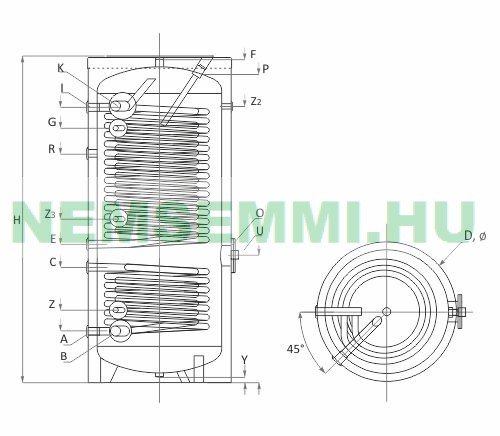

More information on the drawing!

Features :
- Exclusive design
- Large amount of warm water
- Large amount of magnesium anode
- High efficiency thick polyurethane insulation
- 8 bar safety pressure valve
- The product tested according to the strictest requirements
- titanium-ceramic coating tested at 15 bar inner container

Important note: Always ask a professional for help when installing extra large heat exchanger storage tanks and heat pumps. Choosing the right size and capacity storage and correct installation is essential to achieve optimal operation and efficiency. The specialist can assess the needs of the home and recommend the most suitable storage tank and heat pump for the specific situation.

2 DHW tanks with heat exchangers with extra large surface hoses

Extra large heat exchanger storage tanks are hot water storage tanks that have a larger capacity and provide the possibility to connect heat pumps. These tanks can be particularly useful in households or buildings where there is a higher demand for hot water and heat pumps can be used efficiently for heating and hot water supply.
It is particularly suitable for utilizing the heat produced by a solar collector or a heat pump, because a solar collector and a heat pump cannot produce as hot water as a boiler, so the length of the heat exchanger and surface.

General data:

High efficiency thermal insulation and outer PVC cover in RAL 9006 color.
Temperature sensor multi-position installation.
Complex corrosion protection with titanium enamel and anode protection.
All connections are internally threaded.
Easy to install.
Revision hatch.
High efficiency thanks to the increased pipe snake surface. .
It can be equipped with an electric heater in a selectable output of 3kW; 4.5kW; 6kW and 7.5kW.
All water heaters must be ordered with a SK set.

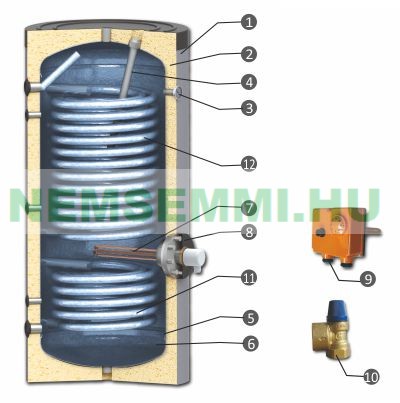

1 – Aesthetic PVC cover in RAL 9006 color
2 – High efficiency thermal insulation
3 – Thermometer
4 – Anode protection (DIN 4753-6)
5 – Electric heater
6 – Water tank made of low-carbon steel
7 - Titanium enamel (DIN 4753-3)
8 - Inspection opening with flange
9 - Thermostat with built-in thermal protection
10 - Safety valve, 8 bar
