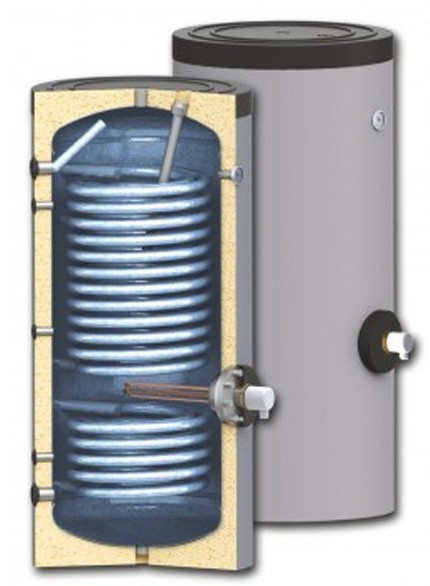

300 liter SunSystem 2 standing water heater with heat exchanger, DHW storage with extra large heat exchangers for solar collector or heat pump. Domestic hot water tank, glass-ceramic coating

HMV container

Volume 300 liters
Size: 1420 x 660 mm
Tank: Enamelled
Nominal pressure in the tank 10 bar
Insulation: 50 mm
Maximum operating temperature 95 °C
Lower heat exchanger coil surface: 1.2 m2
Heat exchanger output: 53 kW
Maximum operating temperature: 110 °C
Nominal pressure in the heat exchanger: 16 bar
Upper heat exchanger coil surface: 2.7 m2
Heat exchanger output: 75 kW
Maximum operating temperature: 110 °C
Nominal pressure in the heat exchanger: 16 bar
Net weight: 145 kg
Thermostat installation preparation
Heating pad installation preparation

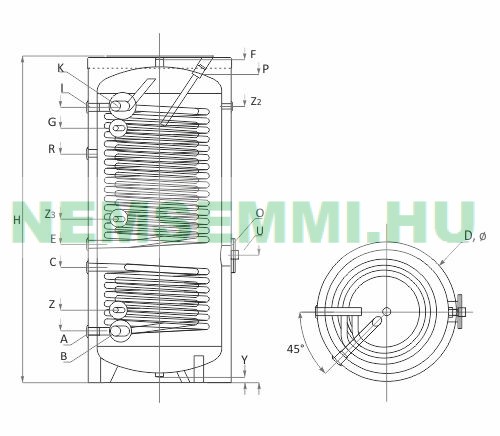

More information on the drawing!

Features :
- Exclusive design
- Large amount of warm water
- Large amount of magnesium anode
- High efficiency thick polyurethane insulation
- 8 bar safety pressure valve
- The product tested according to the strictest requirements
- titanium-ceramic coating tested at 15 bar inner container

Important note: Always ask a professional for help when installing extra large heat exchanger storage tanks and heat pumps. Choosing the right size and capacity storage and correct installation is essential to achieve optimal operation and efficiency. The specialist can assess the needs of the home and recommend the most suitable storage tank and heat pump for the specific situation.

2 DHW tanks with heat exchangers with extra large surface hoses

Extra large heat exchanger storage tanks are hot water storage tanks that have a larger capacity and provide the possibility to connect heat pumps. These storage tanks can be particularly useful in households or buildings where there is a higher demand for hot water and heat pumps can be used efficiently for heating and hot water supply.
Especially suitable for utilizing the heat produced by a solar collector or a heat pump, since the solar collector and the heat pump it cannot produce as warm urine as a boiler, so the length and surface of the heat exchanger are important.

High efficiency thermal insulation and outer PVC covering in RAL 9006 color.
Multi-position mounting of temperature sensor.
Complex anti-corrosion protection with titanium enamel and anode protection.
All connections are internally threaded.
Easy to install.
Revision opening.
High efficiency in thanks to an increased pipe snake surface. .
It can be equipped with an electric heater in a selectable output of 3kW; 4.5kW; 6kW and 7.5kW.
All water heaters can be ordered with a SK set.

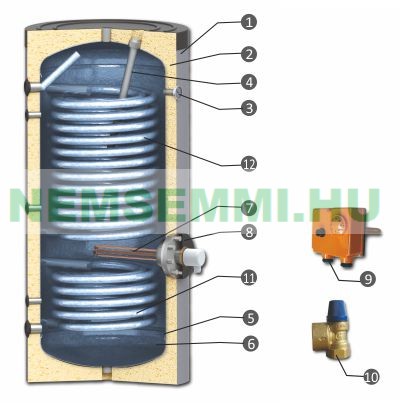

1 – Aesthetic PVC cover in RAL 9006 color
2 – High efficiency thermal insulation
3 – Thermometer
4 – Anode protection (DIN 4753-6)
5 – Electric heater
6 – Water tank made of low-carbon steel
7 - Titanium enamel (DIN 4753-3)
8 - Inspection opening with flange
9 - Thermostat with built-in thermal protection
10 - Safety valve, 8 bar
