Indirect container

Vertical placement
outer appearance: RAL 9006 gray color
Volume: 1500 L
Size: 2310 x 1050 mm
Tilt height: 2370 mm
Tank: Enameled
Nominal pressure in the tank: 10 bar
Insulation: 100 mm
Heating time 15°C – 60°C S1 min
Heating time 15°C – 60°C S2 min
Heat exchange surface S1 3.0 m2
Heat exchange surface S2 2.5 m2
Heat exchanger capacity S1
Heat exchanger capacity S2
Energy consumption in continuous operation 60-80 °C S1 105 kW
Energy consumption in continuous operation 60-80 °C S2 62 kW
Maximum operating temperature 95 °C
Net weight 367 kg
Nominal pressure in the heat exchanger 16 bar
Installation Vertical
Thermostat installation preparation
Heating insert installation preparation

Features :

Exclusive design
A large amount of warm water
Large magnesium anode
High efficiency thick polyurethane insulation
8 bar safety pressure valve
Product tested according to the strictest requirements
16 bar titanium-ceramic coated inner tank

More information:

< !HTML CODE>

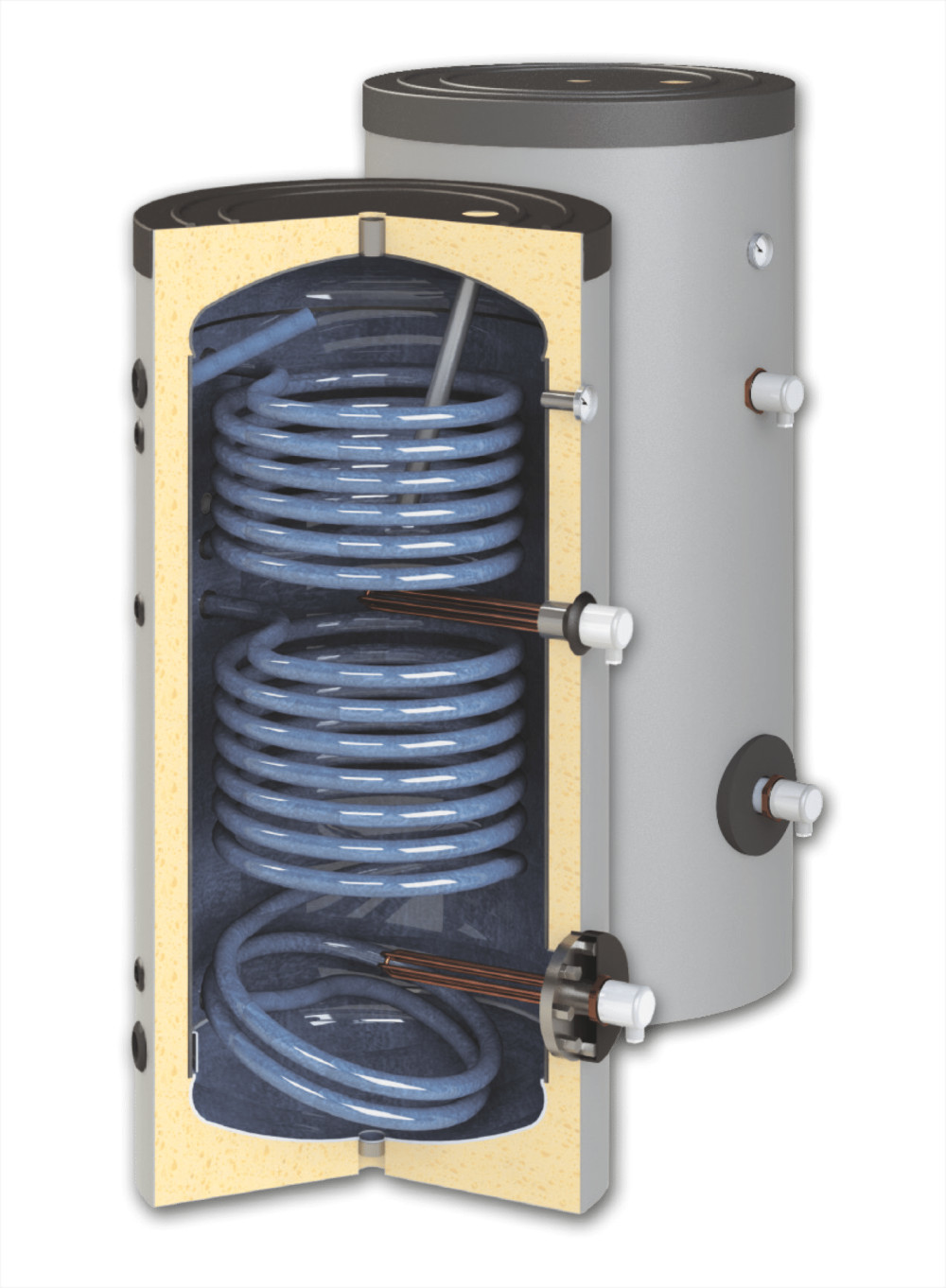

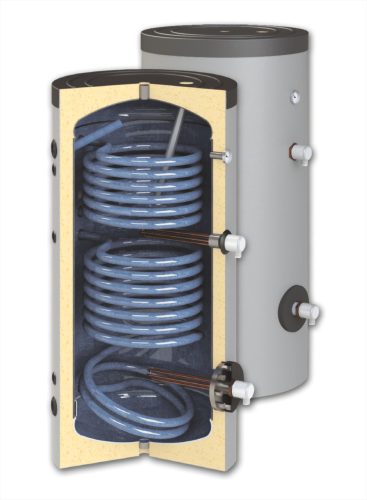

DHW tank with heat exchanger

How they work:

Heat exchangers - There are two heat exchangers in DHW tanks with two heat exchangers. One of the heat exchangers is connected to the external heating system or solar collectors and transfers the heat to the water in the storage. The other heat exchanger is connected to the domestic hot water system.

Insulation - Thermal insulation plays an important role, as it helps reduce heat loss and maintain the temperature of the stored water.

General data:

standing design
complex corrosion protection provided by titanium-enamel internal and exchangeable anode
analog thermometer
50 mm thick CFC-free polyurethane ensures minimal heat loss and energy-saving operation
removability of the inspection opening facilitates cleaning and maintenance of the water heater
safety valve
all connections are internally threaded

1500 liter with 2 heat exchangers!! stationary, indirect SunSystem storage heating and solar collector boiler. Domestic hot water storage, enameled tank DHW
