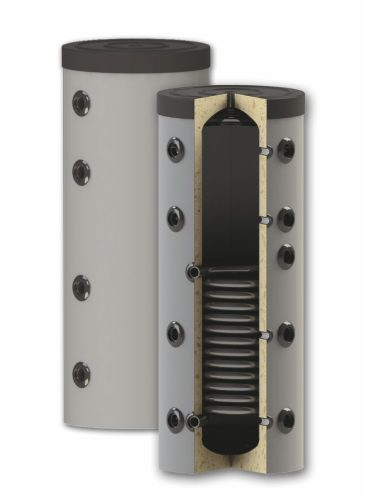

Heating narrow buffer tank - 1 thermally insulated 500 liter tank with a heat exchanger for hot water storage. Sunsystem PS1 500

Heating buffer tank with 1 heat exchanger

Buffer storage capacity: 500 liters
Diameter without insulation: 65 cm
Diameter with insulation 77 cm
Height with insulation 172 cm
Minimum vertical space requirement: 188 cm
Storage operating pressure: 3 bar/95°C
Storage operating temperature: 5 - 95°C
Lower heat exchanger surface: 2.8 m2
Lower heat exchanger volume: 18 liters
Working pressure of heat exchanger: 16 bar/110°C
Weight: 110 kg
Insulation: 5 cm polyurethane
See the drawing for connectors.

Find the corresponding heating pad and sensors in our online store.

Buffer storage with 1 heat exchanger, especially space-saving

Production time: 1-2 months from order.

In this buffer tank, you store the water that circulates in your heating system and that is heated by the boiler or open fireplace.
You can connect the solar collector, heat pump or other heating equipment to the lower heat exchanger.
It is necessary to to connect a solar collector system with a heat exchanger, because antifreeze circulates in it.

Legend:
1. Aesthetic PVC cover in RAL 9006
2. High-quality thermal insulation.
3. Water tank made of low carbon steel.
4. Lower heat exchanger S1.
Connections on all containers, in which an electric heating pad can be installed

If you want to heat the domestic hot water itself, i.e. the hot water flowing from the tap in the tank, choose an indirect storage tank or boiler with a heat exchanger, they are enameled or stainless, so the drinking water in them remains clean!< /span>

Warranty: 2 years
