Buffer tank - 1000 liter tank without heat exchanger for hot water storage, CAN BE PLACED IN A SPECIAL CORNER. Sunsystem

Buffer tank

Buffer tank capacity: 1000 liters
Diameter without insulation: 79 cm
Diameter with insulation 99 cm
Height without insulation: 203.9 cm
Height with insulation 208.9 cm
Weight: 136 kg
Insulation: 10 cm polyester (material similar to wool), removable!
Maximum tank pressure: 3 bar/95°C
The buffer the placement of the tank connectors on one side is within a 90-degree angle,therefore, it is easy to install even when placed in a corner!

See the drawing for connectors.

Find the corresponding heating pad and sensors in our online store,

3kW, 4.5kW, 6kW or 7.5kW inserts are recommended

Buffer storage without heat exchanger< /span>

The connectors of the buffer tank are located on one side within a 90-degree angle,therefore also in the case of corner placement easy to install!
The steel container is not treated on the inside (it doesn't need to be!), the outside is painted with a single layer of primer. In this buffer tank, you store the water that is also circulated in your heating system.
In this it heats the water in the closed circuit directly with the boiler.
It can also be heated with an electric heating pad. You can only connect a solar collector to the buffer tanks with an internal (or possibly external) heat exchanger, because antifreeze circulates in them, so a lower heat exchanger tank is required for that. A heat pump can be connected directly, if the heating circuit does not work with antifreeze. This type is not suitable for storing or preparing drinking water in the absence of a heat exchanger.

In order to produce bath water (domestic hot water, DHW), you can use the hot water from the tank to heat up the tap water in the case of the heat exchanger type.

If you want to heat the domestic hot water itself, i.e. the hot water flowing from the tap, in the tank, choose an indirect hot water storage tank or boiler!

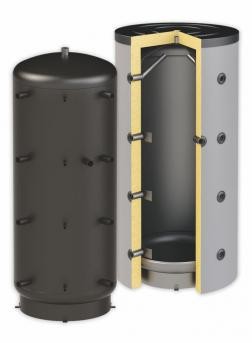

1. The easy-to-clean gray PVC covering protecting the insulation
2. Tank with primer paint
3. Removable thick insulation
4. Low carbon steel tank

Warranty: 2 years
