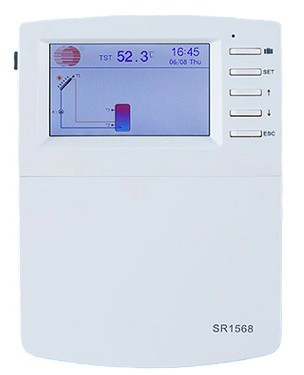

Solar collector control SR1568 solar regulator control controller with 7 sensors

Solar collector controller

Power supply: 230V alternating current
Consumption: 3W
Accuracy of temperature sensors ± 2 C
Collector temperature measuring range (PT1000): -10-200°C
Tank temperature gauge range: 0-100°C
Maximum number of sensors: 8
Output - 7 relays
Environmental optimum temperature: -10 - 50°C
Environmental protection: IP40

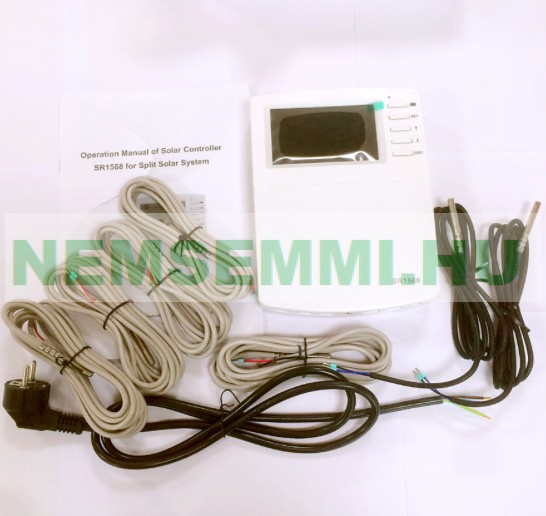

Package contents:
1 programmable wall control unit with display
< /span>2 PT1000 sensors for the solar collector
5 NTC10K sensors for the tanks
1 fixing unit package
1 installation guide

Controller size: 208mm x158mm x43mm
Power supply: AC100-240V50-60Hz. .
Power consumption: <2.5 W
Rated pulse voltage: 2.5 KV
Data interface: TF (micro SD)
485 power supply: 60mA
Housing: plastic ABS
Type of protection: IP41
Protection class: 1
Pollution level: 2
Mounting: Wall mountable
Indication / Display: System Check Display to display the TFT color display and backlight of the system.
Operation: 5 push button on the front cover.
Temperature measurement accuracy:? 0.1oC
Collector temperature measurement: -10oC ~ 220oC
Tank temperature measurement: 0 ° C ~ 110 ° C
Eligible pump power: 6 pumps can be connected
Appropriate HK power (backup heating): 1 pc 1500W.
Inputs: 8 sensors
2 pcs * Pt1000 sensors (? 500oC) for the collector (silicone cable? 280oC)
6 pcs * NTC10K B3950 sensor (? 135oC) for tank (PVC cable? 105oC)
Outputs: 7 relays for circulation pump and backup heating
3 * Electromagnetic relay Max. Current 1A
3 * Semiconductor relay Max. Current 1A
1 * potential-free extra low voltage relay (on / off signal)
3 * PWM variable frequency output (switchable 0-10v)
Environmental temperature: -10 ° C ~ 50 ° C.
Waterproof quality: IP41
Main functions:< /span>

DATE --- Date setting
Light --- Display brightness can be adjusted
Timed heat --- backup heating
Circuit --- Hot water -circulation
Sys? Application Programmer
LOAD --- Load Setup Tank1
LOAD2 --- Load Setup Tank2
COL --- Collector1
Col2 --- Collector2
PUMP --- Pump control mode
LLOGI --- Tank loading logic
COOL --- Cooling function
HEATX --- Thermal energy transfer between tanks.
RPH --- Preheat heating return function
AUX --- Auxiliary function
MAN --- Manual mode
BLPR --- Block protection function
OTDIS --- Thermal disinfection function
OPARR --- Parallel relay function
OHQM --- Heat energy measurement
GFDS --- Grundfos sensor registration
Press --- Press monitor
UNIT --- C-F unit switch
OSDS --- SD card
REST --- back
PASS --- password set
Firmware update
Vacation function< br />Screensaver
Debug
Error checking

Solar collector controller

To control a complex system with 7 sensors.
Control is pre-programmed, personalization it's not complicated.
If you still want professional equipment and programming, when you buy the product, we can recommend a contractor who Bp. It also goes to homes within a 100 km radius.
Management of up to two storage tanks and management of up to two collector fields(E.g. if there is a collector on both the SE and SW roof).
Switching the pool heating.
Solar circuit pump speed control.
Additional heating connection with gas/solid fuel boiler.< /span>
Electric auxiliary heating switching based on tank temperature.
Usable hot water circulation in a pipe.
Freeze protection function.
Tank overheating protection function.
Anti-bacterial function.
Vacation function.
The product contains 5 sensors.
