SID extra large flat collector aluminum mounting unit package for pitched roof. Solar collector aluminum support frame

• Details
• Info

Details

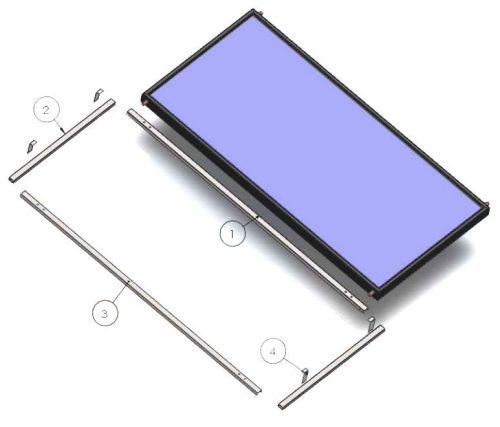

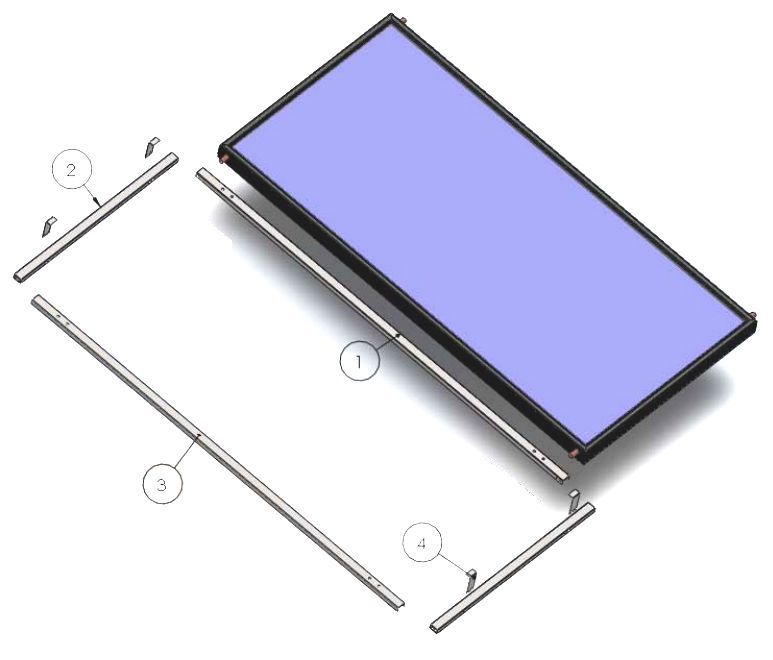

Plane collector pitched roof mounting frame

Support structure made of aluminum profiles
Stainless steel fasteners
< span style="color: #000000;">PACKING SIZE:
220X7X7 cm 5 kg

More information:

Plane collector mounting frame with 6-year warranty

Supporting frame for pitched roofs, with this frame you can install the collector parallel to the plane of the roof.
The roof can be e.g. Bramac tiles, slate, shingles.
It is important that the solar collector is never placed directly on the roof, it is important that there is several cm between the roof and the solar collector air gap!
The collector can be attached to the frame without drilling (this is important!). It is not advisable to place the solar collector directly on the roof,
leave a ventilation gap of a few cm between them.
Primarily for the 2000x1250 mm flat collector we sell, but it can also be good for other makes.
The product is delivered in a cardboard box.
Easy installation and maintenance .

Info

Vonalkód:

630004

MPN-kód:

NS002066

Weight:

5 kg/pcs
