Tank solar collector from the nemsemmi.hu web store

Pool heating with solar collector ONLY TANK

Number of vacuum tubes: 15 pcs 58 mm thick (not included)
Vacuum tube diameter: 58 mm, length: 1800 mm
Tank volume: 120 l
Volume of tank + vacuum pipes: 155 l
Diameter of tank inside 360 mm Outside: 450 mm
Tank material inside: stainless!
Exterior: stainless steel
Thickness of polyurethane insulation: 45 mm
Collector tilt angle: 45 degrees
Packaging dimensions:
Tank: 1425x500x515 22 kg

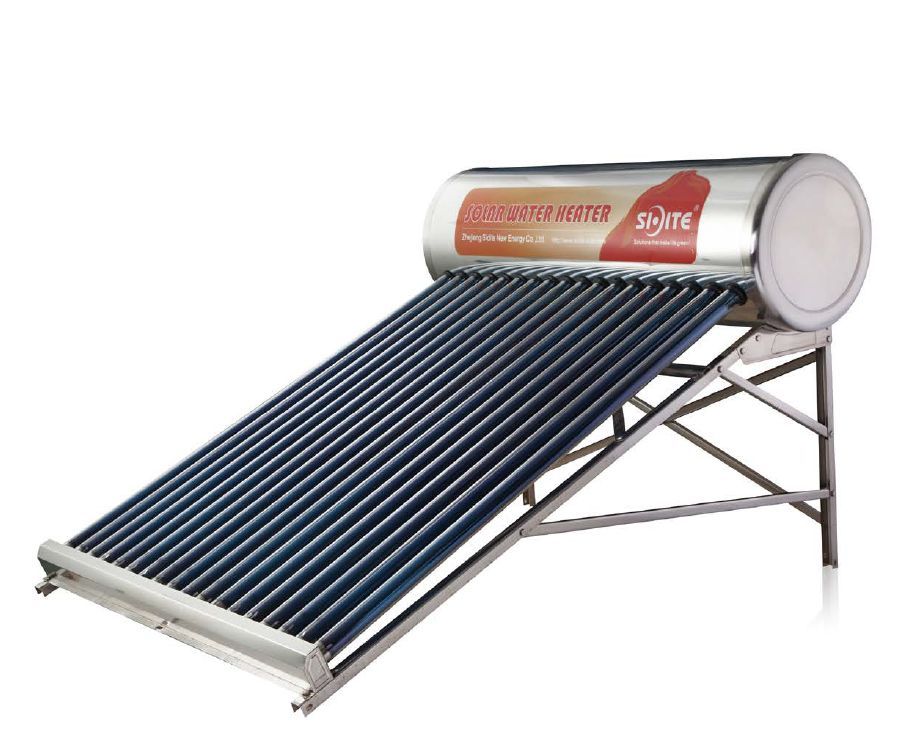

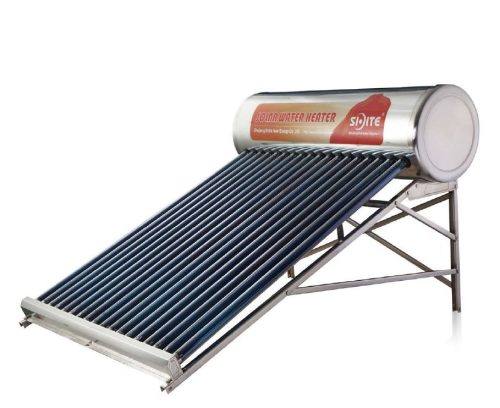

The picture is only an illustration, the complete product is NOT included!

More information:

< span style="color: #000000;">for a collector equipped with a 150-liter stainless, non-pressure-resistant tank PART

What can it be used for?

1. For flow-through water heaters, e.g. swimming pool, agricultural or industrial water for heating..
The most affordable commodity solution. We let the cold water in, and the warm water flows out at the outlet of the overflow
which must not be closed with a tap.

2. For domestic hot water, e.g. in holiday homes.
In this case, it must be filled with water from the tap at the filling socket. Overfilling is prevented by the overflow
pipe.
From the tank at the drain outlet, you can let out the hot water with a tap until all the hot water has been emptied, so that 100% can be used.
After that, the tank must be refilled so that it can heat up again.

Number of vacuum tubes: 15 58 mm thick

CONTAINER ONLY

For vacuum tube solar collector ONLY TANK, 15 tube 150 l tank

Pool heating with solar collector ONLY TANK

< span style="color: #000000;">for a collector equipped with a 150-liter stainless, non-pressure-resistant tank PART
