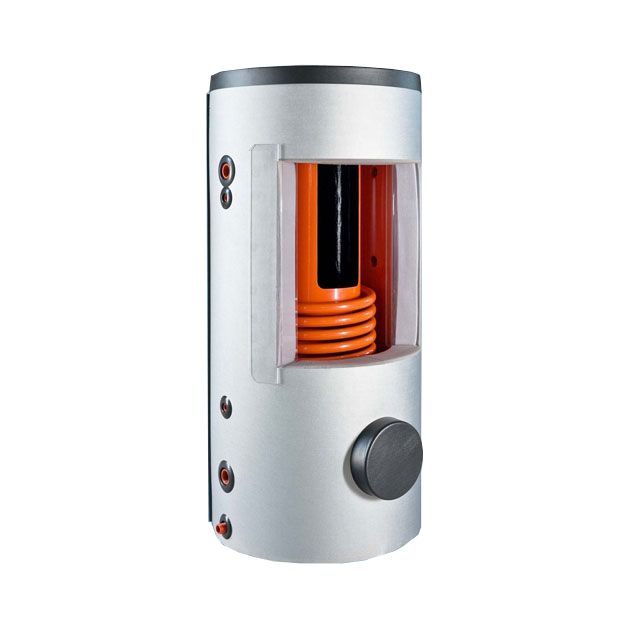

Buffer tank 500 liters - 140 liter internal tank inside - buffer storage without heat exchanger for storing heating hot water and making domestic hot water

Buffer storage - tank within the tank

Volume: 500 liters
Diameter without insulation: 60 cm< br />Diameter with insulation 80 cm
Height: 199 cm
Weight: 118 kg
Insulation: none
Pressure: max. 0.3 MPa
Max water temperature in the tank: 90°C

Buffer tank

• actual capacity: 383 liters
• maximum pressure: 3 bar
• maximum temperature 90°C

Internal DHW tank

• actual capacity: 92 liters
• maximum pressure: 6 bar
• maximum temperature 90 °C
• external surface: 1.25 m2

See the drawing for connectors

Buffer tank with internal storage< /h2>

Buffer tank without heat exchanger, but with an enameled domestic hot water tank built into the tank < strong>without insulation.
The inside of the steel storage tank is not treated (it is not even necessary, as it will contain oxygen-free water, so not it rusts), it has a single-layer primer paint on the outside.
In this buffer tank, you store the warm water that is also circulated in your heating system.
In this closed circuit, you can even heat the water directly with a wood-burning boiler or a water fireplace.
It can also be heated by electric also with a heating pad.
You can only connect a solar collector to the buffer tanks with an internal (possibly external) heat exchanger, because antifreeze circulates in them, therefore a lower heat exchanger tank is required. A heat pump can be connected directly, if the heating circuit does not work with antifreeze.
Preparation of heated bath water and is stored in the built-in inner container, which is enamelled.

Delivery takes 4-8 weeks as each order is individually manufactured. A 30% advance payment is required to finalize the order.
