Solar collector pump station 1600 l/h with three-way mixing valve with servo motor Environ high efficiency pump

Solar pump station

Flow rate: 1600 l/h
Max. temperature: 110°C
Minimum temperature: 10°C
Dimensions: 400 x 250 x 240 mm
Center distance: 125 mm
Nominal size: DN 25 - 1"
System connections: 1 1/2" AG
Maximum pressure: 6 bar
Medium: usable liquids - Water, glow solutions
Pump type: Environ EcoStar 25/6 180 mm high efficiency pump
Pump installation length: 180 mm
Power unit: 230V
Insulating material: EPP
Thermometer scale: 0-160 °C
Material insulation: EPP 40 g/l
Sealing: EPDM
Material of the body of the heating circuit station: brass / refined quality steel

Technical data Environ EcoStar 25/6 high efficiency pump:
Lift height: 6 m
Transport speed: max. 3.6 m³/h
Temperature range: between -20°C and +110°C
Energy consumption: 3W-43W
Operating pressure: max. 10 bar
Electrical connection: 230V/50HZ
Power voltage: 220~240V, 50/60Hz
Protection level: IP44
Insulation class: H
EMC standard: EN61000-6-1 and EN61000-6-3

Solar pump station

This pump station is a ready-to-install, professional pump group for heating circuits such as underfloor heating, wall heating, radiators. Equipped with built-in brass three-way mixing valve and ESBE ARA661 electric servo motor. Equipped with an Environ EcoStar 25/6 180mm high efficiency pump.

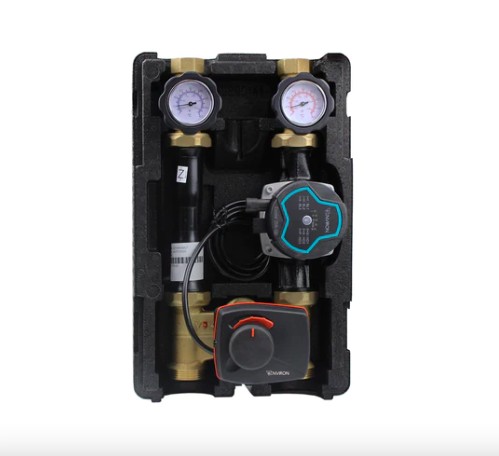

The direction of flow and return can be easily reversed. In the upper part of the pump group, there are shut-off valves (1" IT) with built-in thermometers (0-160°C) and an integrated gravity brake. If the pump station is installed separately, a wall bracket can be screwed to the shut-off valves (not included). Circulation pump maintenance or replacement is very easy without lowering the system. The wheelbase is 125 mm and the size of the lower connectors is 1½", so it is directly conventional can be mounted on a distribution pipe.

The thermal insulation made of EPP provides an optimal climate inside the insulation, so heat does not accumulate. You can switch from heating mode to cooling mode with a simple movement of your hand.
