Modular heat exchanger

Plate number: 67
Installation height (L): 220 mm
Heat exchanger width (B): 200 mm
Heat exchanger length ( A): 310 mm
Distance of connection terminals (long side - C): 231 mm
Distance of connection terminals (short side - D): 69 mm
Connection: DN32 (1"¼)
Volume (cold branch = hot branch): 1.7 l
Closing element material (not in contact with liquid): painted mild steel
Material of nut and screws (not in contact with liquid): galvanized mild steel
Plates and connections (in contact with liquid): stainless steel - 316L
Gasket material: NBR

Liquid Compatibility:

• water • swimming pool water • milk • whiskey • acetone • glycol • glycolic water • mineral water • wine • wine vinegar • ethanol • ethylene glycol • deionized water • acetic acid • beer • liquor • methanol • propylene glycol

Request an offer for heat exchanger sizingour customer serviceland send us this table.
We can prepare the offer by entering the following data:

Pressure:

PN10
PN16

Slab material:

Stainless steel (AISI 316L)

Sealing:

NBR
EPDM

Primary Page	(general data)	Secondary Page	(general data)
Liquid	water	Liquid	water
Liquid flow m³/h		Liquid flow m³/h
Incoming temperature ºC	80	Incoming temperature ºC	50
Output temperature ºC	70	Output temperature ºC	60
Pressure drop kPa	30	Pressure drop kPa	30
Tolerance (%)	30	Tolerance (%)	30
Pollution factor ( m²K)/	0	Pollution factor ( m²K)/	0

Connections of different types:

< /a>

Connections of different types:

More information:

Installed 67 plate heat exchanger

PHC heat exchangers can be mounted from plate to plate, and therefore can be expanded.
Their design enables easy cleaning of the heat exchanger. The modular structure allows the existing heat exchanger to be further configured, so expansion and reduction are also possible.
These assembled plate heat exchangers comply with PED 97 /23/CE 3.3 standard.
PHC heat exchangers can be used both in households and in industry. They are particularly suitable for the production of mains hot water, for heating swimming pools, or when using other energy sources (boiler, solar collector, solid fuel).

Request an offer for heat exchanger sizingfrom our customer service!

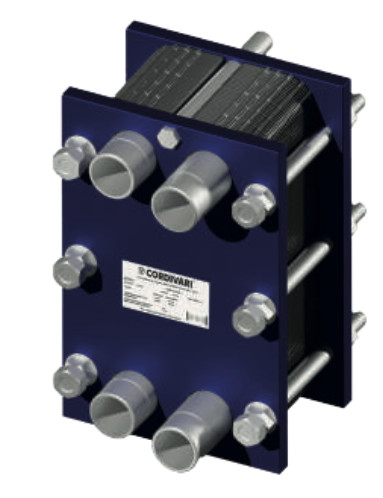

Assembled modular plate heat exchanger 67 plates PHC 2030 - DN32 connection NBR seal
