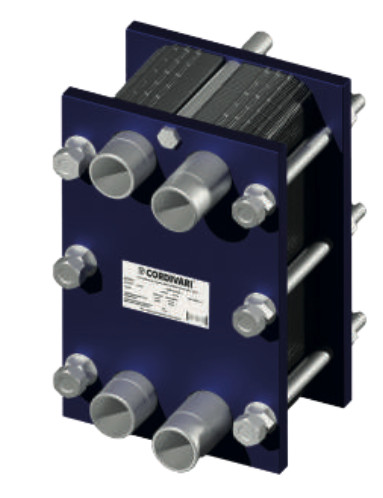

Assembled modular plate heat exchanger 43 plates PHC 2030 - DN32 connection NBR seal

Modular heat exchanger

Plate number: 35
Installation height (L): 220 mm
Heat exchanger width (B): 200 mm
Heat exchanger length ( A): 310 mm
Distance of connection terminals (long side - C): 231 mm
Distance of connection terminals (short side - D): 69 mm
Connection: DN32 (1"¼)
Volume (cold branch = hot branch): 0.9 l
Closing element material (not in contact with liquid): painted mild steel
Material of nut and screws (not in contact with liquid): galvanized mild steel
Plates and connections (in contact with liquid): stainless steel - 316L
Gasket material: NBR

Liquid Compatibility:

• water • swimming pool water • milk • whiskey • acetone • glycol • glycolic water • mineral water • wine • wine vinegar • ethanol • ethylene glycol • deionized water • acetic acid • beer • liquor • methanol • propylene glycol

Request an offer for heat exchanger sizingfrom our customer service and send us this table.
We know the offer by entering the following data make:

Pressure:

• PN10
• PN16

Slab material:

• Stainless steel (AISI 316L)

Sealing:

• NBR
• EPDM

Connections of different types:

< /a>

Installed 43 plate heat exchanger

PHC heat exchangers can be mounted from plate to plate, and therefore can be expanded.
Their design enables easy cleaning of the heat exchanger. The modular structure allows the existing heat exchanger to be further configured, so expansion and reduction are also possible.
These assembled plate heat exchangers comply with PED 97 /23/CE 3.3 standard.
PHC heat exchangers can be used both in households and in industry. They are particularly suitable for the production of mains hot water, for heating swimming pools, or when using other energy sources (boiler, solar collector, solid fuel).

Request an offer for heat exchanger sizingfrom our customer service!
