Floor heating

Operating voltage: 230 V
Max. power consumption: 150 watts/m²
Max. operating temperature: 80°C
Operating temperature: -10°C
IP protection: IPX7
Cable diameter: 17 mm flat cable
Loop distance: 5.0 cm
Connecting cable length: 4.5 m
Protection device: FI circuit breaker 30 mA

More information:

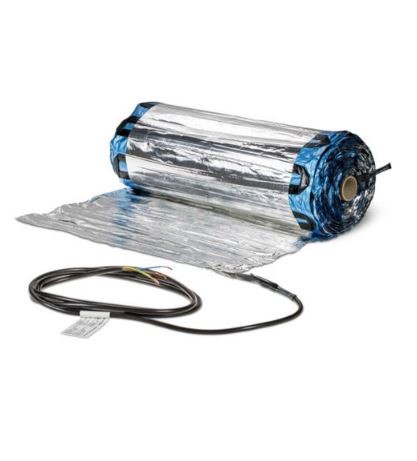

Electric floor heating aluminum heating mat

Electric floor heating aluminum heating mats are designed for the installation of laminate, parquet or vinyl.The heating mat consists of a 17 mm wide flat cable with loop distance is only 5 cm. The 17 mm wide heating area and the 5 cm distance ensure greater efficiency compared to standard products. The gold polyimide film coating on the outside of the heating cable makes the heating cable extremely robust and longer-lasting due to its resistance to chemicals. to be installed underneath.
It is advisable to place the carpet 60 cm from the wall.
For optimal temperature control, install a thermostat with a maximum temperature limit of 27°C.

Features

Patented technology
17 mm wide heating cable
Up to 5x larger heat exchange surface
Additional polypropylene protective coating
Chemical robustness

Electric floor heating aluminum heating mat 150 watts/m² 1.5 m²
