Carbon fiber underfloor heating mat

Operating voltage: 230V
Energy consumption: 100 watts / m²< br />Patented quick connector, 4 mm thick and IP67
The heating mats are connected in parallel.
Max. The 8A / 1840Watt / 18m² pro can be connected in parallel.

These products comply with the electrical safety precautions defined by the 2006/95 / EC low voltage directive and 2004/108 / EC Directive EMC requirements.
They meet the electromagnetic emission CEI EN 50366: 2004 standards as well.
UNI EN fireproof certificate : 13501-1: 200 class: B
These products are tested by CE, TÜV and CB certified.
Contents:

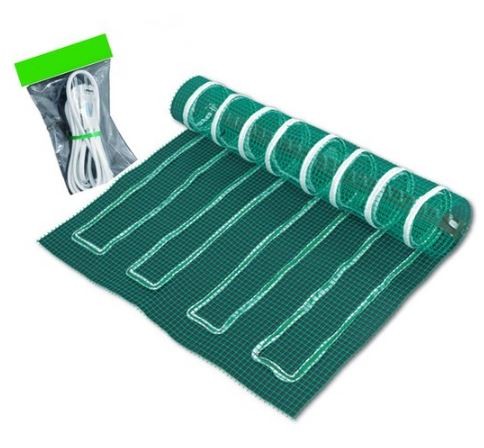

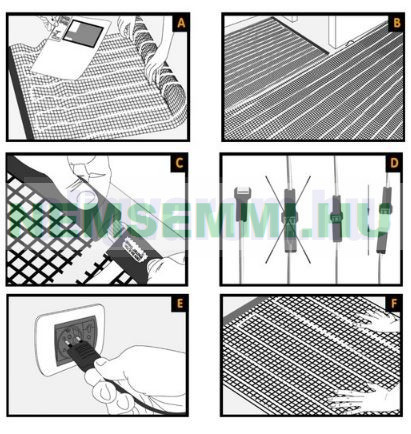

The basic set includes a charcoal heating mat and a Includes a 400 cm long connection cable. The connection cable is delivered with a Euro connector, so the functionality of the entire installation can be tested quickly and safely.
After the installation is finished, the Euro connector is cut off,< span>and the connecting cable connects to a thermostat.

More information:

Heating mat under carbon fiber tiles

Carbon fiber heating mats have many advantages over traditional heating mats. /span>
- They do not generate harmful electromagnetic fields.
- Carbon fiber cannot oxidize.
- The lifetime of carbon fibers is unlimited.
- Carbon fiber is 100% recyclable.
- The heat absorption (internal energy) of carbon is half of copper, which means more heat is released.
Carbon cable consumes less electricity than other cables of the same performance and climatic conditions. This heats up faster than traditional copper cable.
For example: made of carbon fiber heating cable rises from 20°C to 50°C
in 0:05:38 while copper cable under the same conditions 0:12:23. Carbon fiber's lower heat absorption results in much faster heat release. This guarantees an electrical energy saving of more than 40% compared to copper heating cables.

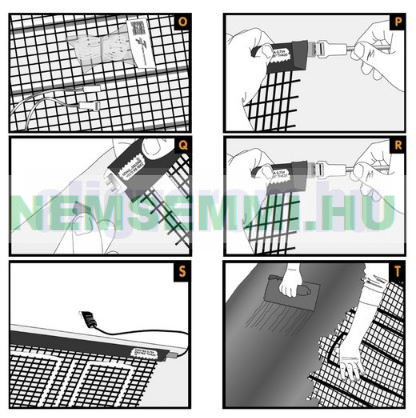

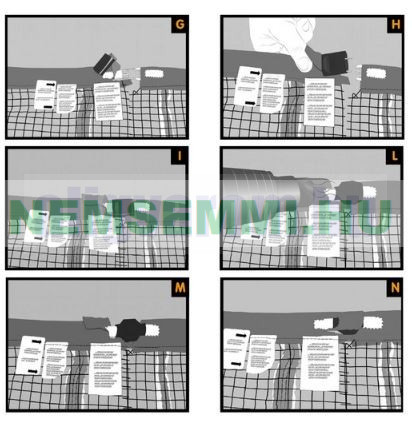

The heating mats can be connected directly and next to each other, but they can be moved slightly with the help of extension cables. too. The connection is made using a patented quick release.

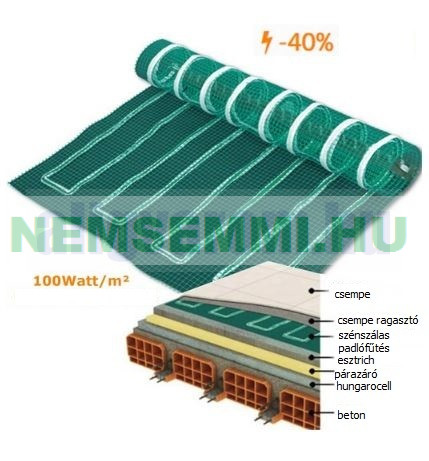

The 4 mm thickness and IP67 protection class allow installation in the tile adhesive or the smoothing mixture.

Carbon fiber underfloor heating mat 100 W/m² 90 x 250 cm (2.25 m²)

Carbon fiber underfloor heating mat

Heating mat under carbon fiber tiles
