Floor heating

Operating voltage: 230 V/AC
Max. energy consumption: 150 watts/m²
Max. operating temperature: 80°C
Min. operating temperature: -10°C
Heating mat width: 50 cm
Heating cable width: 17 mm flat cable
Loop distance: approx. 5-6 cm
Connecting cable length: 4.5 m
IP protection class: IPX7
Safety measure: FI breaker 30mA

More information:

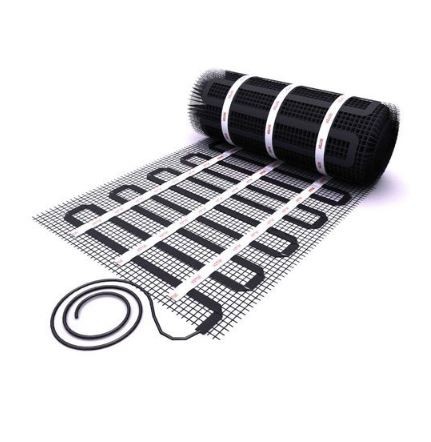

Electric heating mat

The black heating mat is characterized by its unique product technology,which has a round heating cable provides better heat distribution than other heating systems #000000;">Thanks to the flat and wide heating cable, the heat-emitting surface is five times larger. In addition, the small loop spacing of approx. 5-6 cm ensures that the floor covering heats up evenly and quickly. These basic features make this heating system particularly efficient.
The multi-layer flat heating cable is attached to a fiber optic network, which simplifies installation, provides stabilization and has a crack-bridging effect.The heating mat can be used both indoors and outdoors can be used.
Suitable for private use and floor heating, but also for heating greenhouses, cultivated areas, sports fields or industrial halls.
< span style="color: #000000;">Features:

Electric floor heating heating mat with flat heating cable 150 watts/m² 3.0 m² can be used indoors and outdoors
